Product Detailed Parameters
- Description：CONN HEADER VERT 20POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

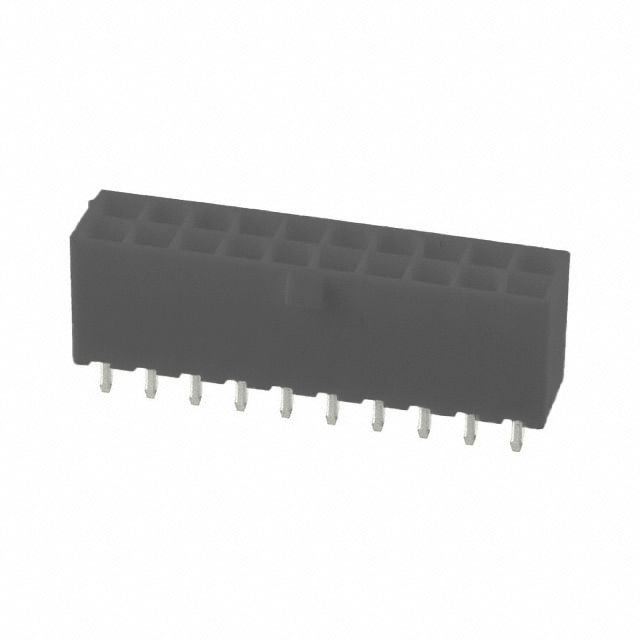

The Amphenol ICC (FCI) 10131319-2022100LF is a vertical power-to-board header connector from the Minitek Power4.2 series. It features a 4.2 mm pitch and a dual-row configuration with 20 positions. The contacts are constructed from copper alloy and finished with tin plating to ensure reliable conductivity. Designed for through-hole mounting, this component supports a current rating of 12.5 A per contact. It operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 1 GOhms.
Feature Summary
- Vertical through-hole mounting design for direct board integration
- Dual-row layout accommodating 20 positions at a 4.2 mm pitch
- Tin-plated copper alloy contacts for stable electrical performance
- High current capacity rated at 12.5 A per contact
Applications
- Power distribution in industrial equipment
- Server and storage system interconnects
- Telecommunications infrastructure hardware
- General-purpose power supply connections
Procurement Notes
Verify the complete part number against official Amphenol documentation to confirm specific packaging quantities and reel specifications. Ensure that the tin contact finish aligns with your soldering process requirements. Confirm availability status directly with authorized distributors, as lead times may vary based on production schedules and regional stock levels.
Selection Notes
Select this connector when a high-current vertical interface is required for power delivery. The 4.2 mm pitch allows for robust spacing suitable for significant amperage loads. Verify that the PCB footprint matches the dual-row header dimensions. Consider the operating temperature range to ensure compatibility with the environmental conditions of the target application.
Part Context
This component belongs to the Minitek Power4.2 series by Amphenol FCI, designed for power-to-board applications. The series offers various pin counts and configurations to support diverse power distribution needs. It is engineered for durability in demanding environments, providing reliable connectivity for systems requiring efficient power transmission between boards.
Replacement Considerations
Consult official cross-reference data for compatible alternatives. Verify that any substitute maintains the 4.2 mm pitch, 20-position count, and vertical orientation. Ensure equivalent current ratings and thermal performance characteristics are met before implementation.
