10131319-20221G0LF

Overview

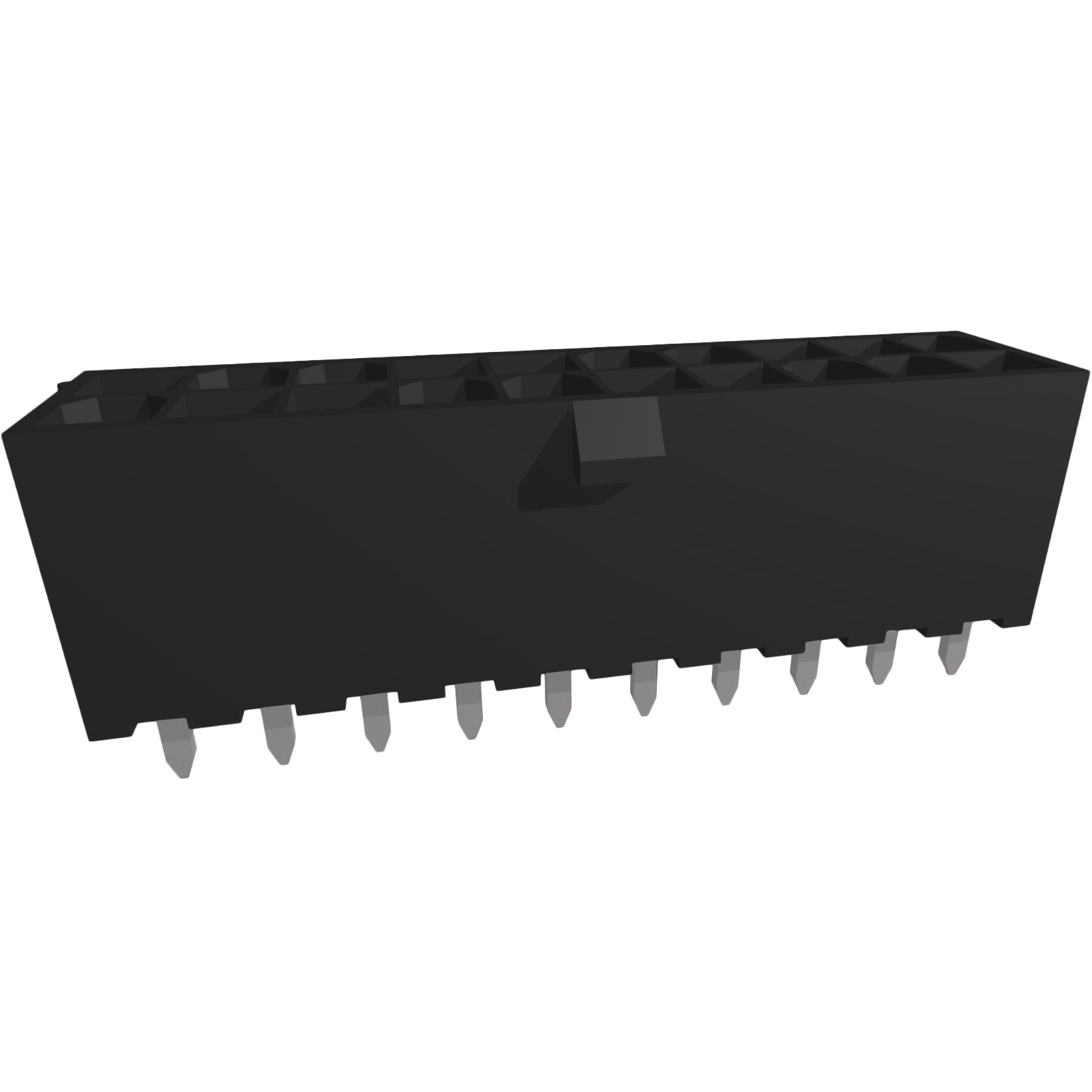

The Amphenol ICC (FCI) part number 10131319-20221G0LF is a Minitek Pwr 4.2 High Current Series vertical header connector designed for power-to-board applications. It features a 20-position, 2-row configuration with a 4.2 mm pitch. The component utilizes gold-plated copper contacts and is rated for 12.5 A current capacity. It operates within a temperature range of -40°C to +105°C and meets UL94 V-0 flammability standards.

Feature Summary

• High current capability suitable for demanding power distribution tasks
• Vertical through-hole mounting for secure board integration
• Gold-plated contacts ensure reliable electrical conductivity

Applications

• Server and storage equipment power distribution
• Industrial control system power interfaces
• Telecommunications infrastructure power supply connections

Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm contact plating thickness and material specifications. Ensure compatibility with mating receptacles regarding row alignment and pin count. Confirm that the vertical height and pitch meet the target PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when high current carrying capacity is required in a compact vertical form factor. The 4.2 mm pitch allows for robust trace spacing on the PCB. Verify that the operating temperature range aligns with the environmental conditions of the intended application to ensure long-term reliability and performance stability.

Part Context

This connector belongs to the Minitek Pwr 4.2 series, which is engineered for high-current power delivery in dense electronic assemblies. The series is widely used in data center and industrial environments where reliable power transmission is critical. The design emphasizes durability and ease of assembly for manufacturing processes.

Replacement Considerations

Direct substitutes include other 20-position, 4.2 mm pitch vertical headers from the same manufacturer series. Cross-referencing with equivalent models such as 10131319-20211G0LF requires verification of identical mechanical dimensions and electrical ratings to ensure functional interchangeability without redesigning the host PCB.

FAQ

What is the current rating for this connector?

The connector has a current rating of 12.5 A.

Does this component support surface mount technology?

No, it is designed for vertical through-hole mounting.
