Product Detailed Parameters

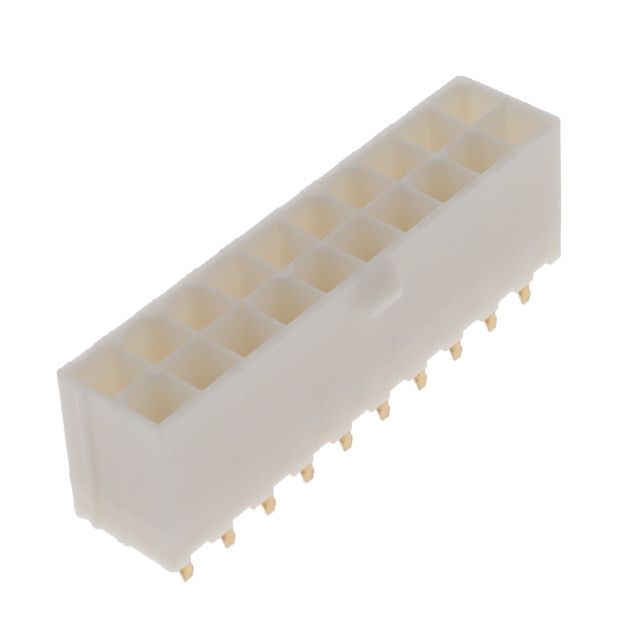

- Description：10131319-204120PLF-MTK 4.2 20P D
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-204120PLF is a Minitek Power 4.2 series power-to-board header connector. It features a dual-row configuration with twenty positions and a 4.2 mm mating pitch. The contacts are male pins made of copper with gold plating, housed in a black nylon 6.6 insulator. Designed for vertical through-hole mounting, it supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C.
Feature Summary
- Dual-row vertical header design for high-current power distribution
- Gold-plated copper contacts ensure reliable conductivity and corrosion resistance
- Black nylon 6.6 housing provides structural integrity and thermal stability
Applications
- Industrial control systems requiring robust power connections
- Server and storage infrastructure power buses
- Telecommunications equipment power supply interfaces
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm contact plating and housing color specifications. Ensure compatibility with mating receptacles regarding row spacing and pin alignment. Confirm availability status as this component may be subject to factory special order requirements or limited stock conditions depending on regional distributor networks.
Selection Notes
Select this connector when a 4.2 mm pitch dual-row header is required for high-current applications up to 12.5 A per contact. The gold plating is suitable for environments where corrosion resistance is critical. Verify that the PCB layout accommodates the vertical through-hole termination style and the specific housing dimensions of the Minitek Power 4.2 series.
Part Context
This component belongs to the Minitek Power 4.2 series, designed for demanding power delivery applications. The series offers various position counts and termination styles. The 10131319 prefix typically denotes a dual-row vertical header variant within the broader Minitek product family, emphasizing compactness and high current capacity.
Replacement Considerations
Direct substitutes must match the 4.2 mm pitch, 20-position count, dual-row vertical orientation, and gold-plated contact finish. Cross-reference with other manufacturers offering equivalent Minitek-style headers only if mechanical and electrical parameters align precisely.
