Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Glow Wire Compliant, Pick and Place
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

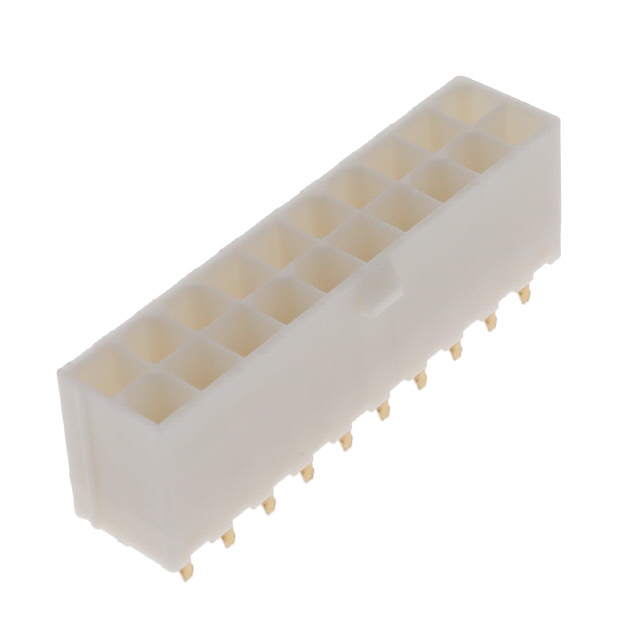

The Amphenol ICC (FCI) part number 10131319-20412GTLF is a Minitek Power 4.2 series vertical header connector designed for power-to-board applications. It features a 4.2 mm pitch and a dual-row configuration with 20 positions. The contacts are constructed from copper and plated with gold to ensure reliable conductivity. Rated for 12.5 A per contact, the component operates within a temperature range of -40°C to +105°C. It utilizes a through-hole termination method and includes a natural-colored insulator.
Feature Summary
- High-current capability rated at 12.5 A per contact for robust power distribution
- Gold-plated copper contacts provide durable and low-resistance electrical connections
- Vertical board-mount design facilitates efficient space utilization on circuit boards
Applications
- Industrial electronic equipment requiring high current density
- Power distribution systems in server infrastructure
- Communication devices needing reliable board-to-cable interconnects
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm plating thickness and material specifications. Ensure that the selected variant matches the required current rating and thermal performance for the intended application environment. Cross-reference the full part number with authorized distributors to confirm availability and compliance with relevant regulatory standards such as RoHS.
Selection Notes
Select this connector when high current carrying capacity is critical for the system design. The 4.2 mm pitch allows for larger contact areas compared to standard signal connectors. Consider the vertical orientation for assembly constraints and verify that the 12.5 A rating aligns with the maximum load requirements. Evaluate the operating temperature range to ensure stability under expected environmental conditions.
Part Context
This component belongs to the Minitek Power 4.2 series by Amphenol ICC (FCI), which specializes in high-current rectangular connectors. The series supports various position counts and termination styles for power delivery. It is engineered for demanding environments where signal integrity and thermal management are essential for long-term reliability.
Replacement Considerations
Consult official Amphenol ICC (FCI) substitution guides for verified alternative part numbers. Do not assume compatibility based solely on pitch or row count; verify mechanical dimensions and electrical ratings.
