10131319-2211100LF

Overview

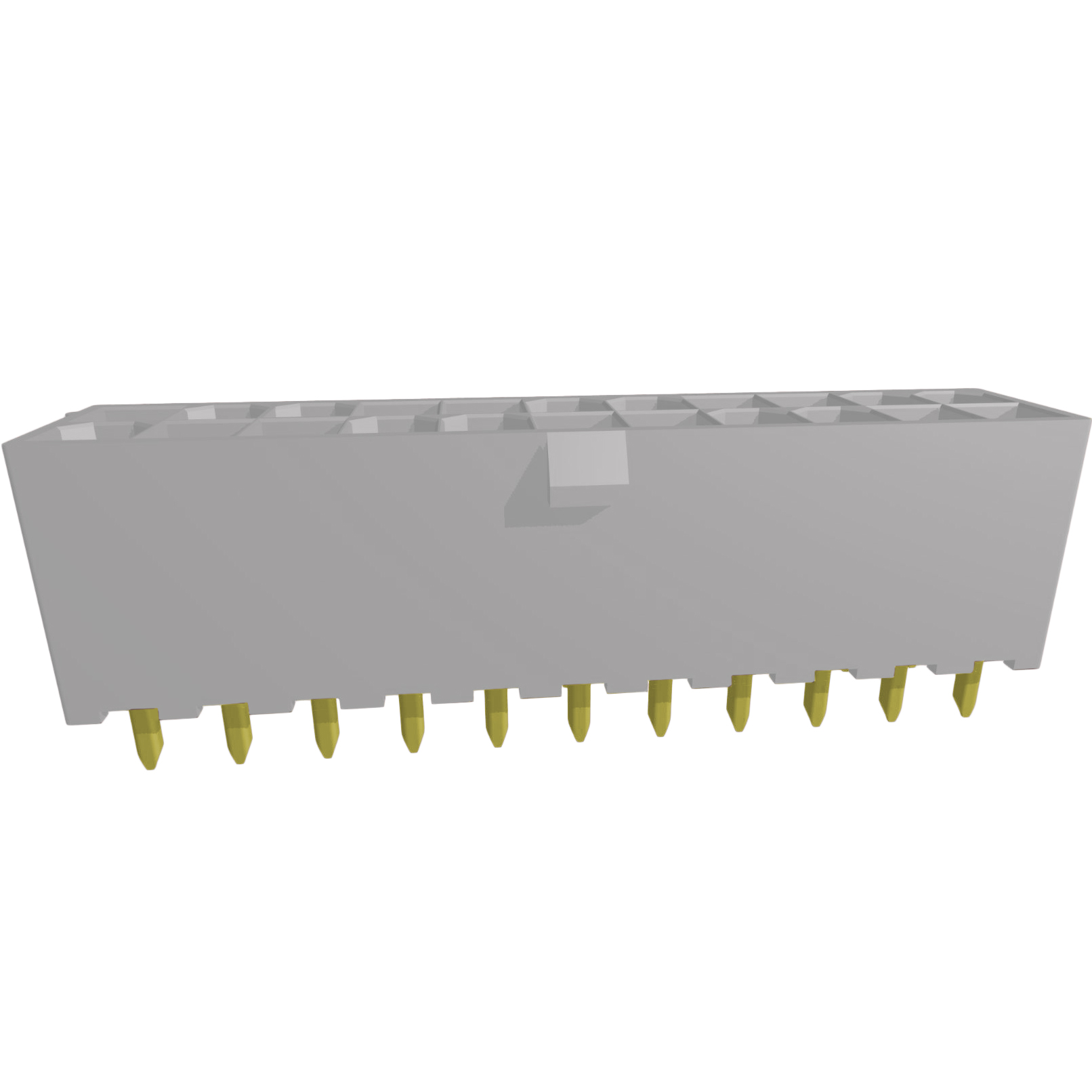

The Amphenol ICC (FCI) 10131319-2211100LF is a Minitek Pwr 4.2 Higher Current Connectors (HCC) header designed for power-dense applications. It features a 22-position configuration with a 4.2 mm pitch and supports current ratings up to 12.5 A per contact. The component utilizes through-hole vertical mounting and gold-plated copper contacts housed in a natural insulator. It operates within a temperature range of -40°C to +105°C, offering high insulation resistance and robust performance for server and storage power distribution.

Feature Summary

• Designed for power-dense applications requiring higher current capacity
• Vertical through-hole mounting for secure board integration
• Gold-plated copper contacts ensure reliable electrical conductivity

Applications

• Server power distribution systems
• Storage device internal connections
• Communication equipment power interfaces

Procurement Notes

Verify the specific ordering suffix and environmental compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the lead time aligns with project schedules, as this component may be subject to factory special order constraints. Ensure compatibility with mating sockets and verify that the voltage rating meets system requirements.

Selection Notes

Select this connector when high current handling is required alongside a compact 4.2 mm pitch. The HCC series provides superior thermal management compared to standard Minitek variants. Ensure the PCB layout accommodates the vertical profile and through-hole termination style. Verify that the mating connector matches the 22-position, double-row specification for proper alignment.

Part Context

This part belongs to the Minitek Pwr 4.2 family, which bridges signal and power connectivity needs. It is manufactured by Amphenol ICC (formerly FCI), known for durable interconnect solutions. The series is widely used in enterprise computing infrastructure where reliability under thermal stress is critical.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching pitch, current rating, and pin count with equivalent HCC series components from other manufacturers if necessary.

FAQ

What is the maximum current rating for each contact?

Each contact is rated for up to 12.5 A.

Is this connector RoHS compliant?

Yes, the component is RoHS compliant.
