10131319-22111G0LF

Overview

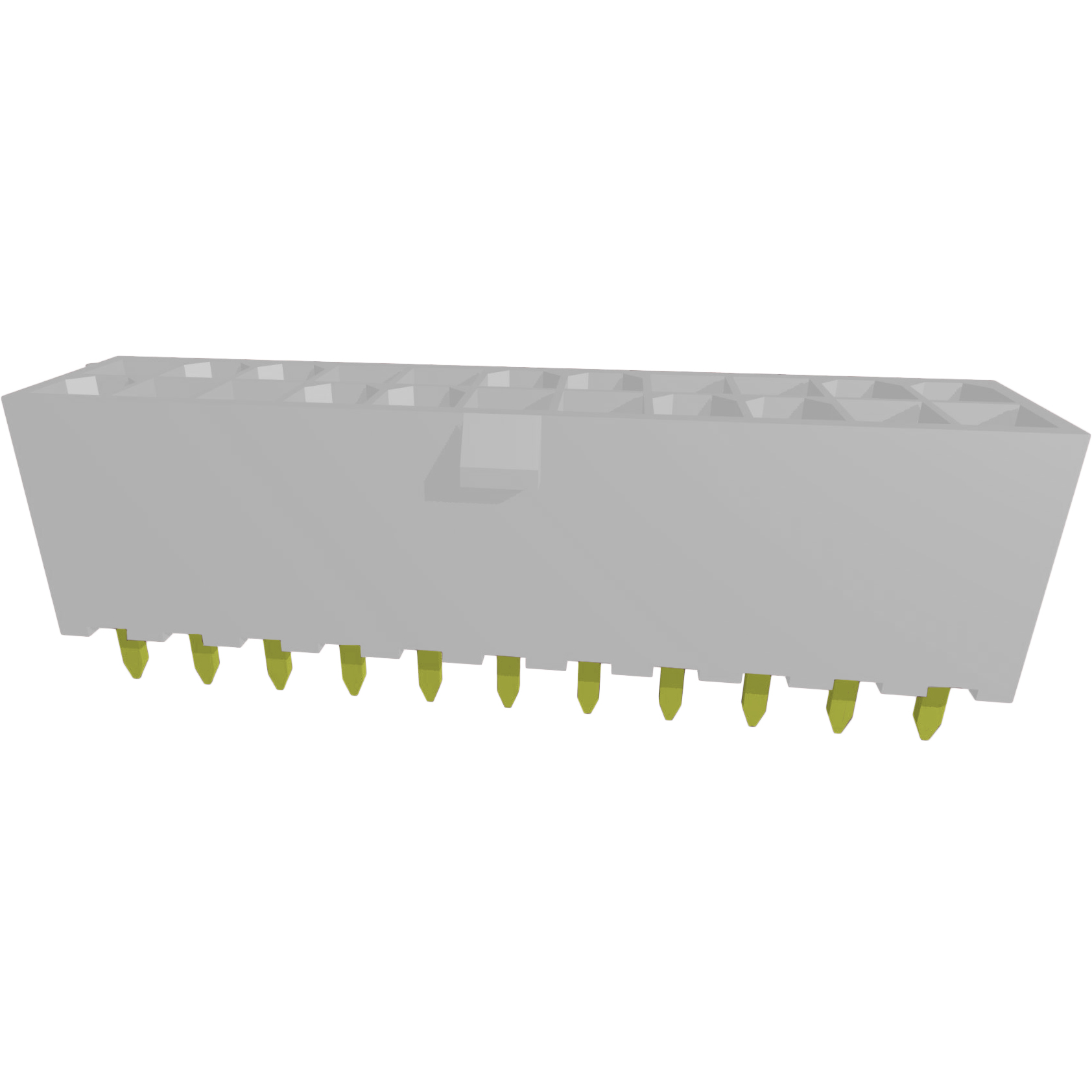

The Amphenol ICC (FCI) part number 10131319-22111G0LF is a vertical power header from the Minitek Pwr 4.2 series. It features 22 positions with a 4.2 mm pitch and utilizes gold plating on contact surfaces. Designed for through-hole mounting, this connector supports high-current applications with a rated current of 12.5 A per contact. The housing is constructed from black thermoplastic material compliant with UL94 V-0 flammability standards. Operating temperatures range from -40°C to +105°C, ensuring reliability in demanding electronic environments.

Feature Summary

• High-current capability suitable for power distribution
• Gold-plated contacts for enhanced conductivity
• Vertical board-to-board or cable connection style

Applications

• Power supply modules
• Industrial control systems
• Telecommunications equipment

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, pitch, and termination type. Ensure compatibility with mating connectors regarding current ratings and thermal performance. Confirm RoHS compliance status and moisture sensitivity level requirements for your assembly process before finalizing procurement orders.

Selection Notes

Select this component when high current capacity is required alongside a compact 4.2 mm pitch. Consider the vertical orientation for space-constrained PCB layouts. Evaluate the gold plating thickness against environmental exposure needs. Compare against other Minitek Pwr variants if different row configurations or insulation heights are necessary for the specific design constraints.

Part Context

This connector belongs to the Minitek Pwr 4.2 family, designed for robust power interconnections. The series offers various position counts and termination options. This specific model provides a balanced solution for medium-density power routing. It complements lower-pitch signal connectors by offering higher current handling capabilities within the same product ecosystem.

Replacement Considerations

Consult official substitution lists for equivalent parts with identical electrical ratings and mechanical dimensions. Verify that any alternative maintains the 4.2 mm pitch and 12.5 A current rating. Cross-reference pinout configurations to ensure direct compatibility without redesigning the printed circuit board layout.
