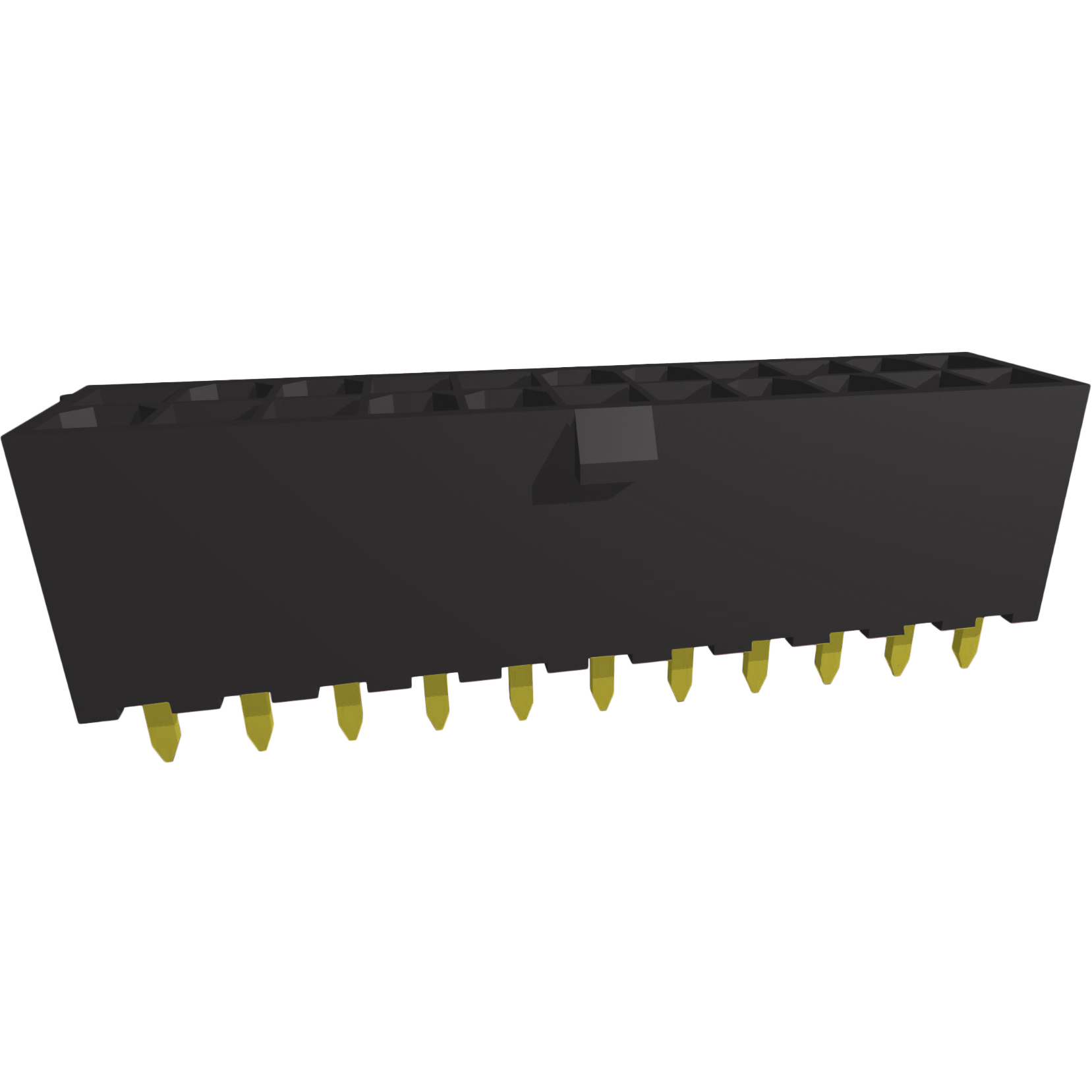

10131319-22121G0LF

Description：CONN HEADER VERT 22POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:87d29aeee34d Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 22POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：22
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：Glow Wire Compliant
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10131319-22121G0LF

Overview

The Amphenol ICC (FCI) 10131319-22121G0LF is a Minitek Pwr 4.2 series power connector designed for board-to-board applications. It features a 22-position, double-row header configuration with a 4.2 mm pitch. The component utilizes gold-plated copper alloy contacts and a black liquid crystal polymer (LCP) housing. Rated for 12.5 A current and 600 VAC voltage, it supports through-hole vertical mounting. The operating temperature range spans from -40°C to +105°C, ensuring reliability in demanding electronic environments.

Feature Summary

High-current capability rated at 12.5 A per contact
Gold-plated copper alloy contacts for corrosion resistance
Liquid crystal polymer (LCP) insulation material
Vertical through-hole mounting style

Applications

Power distribution in industrial equipment
Server and storage system power connections
Telecommunications infrastructure hardware
Automotive electronics power modules

Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm contact plating thickness and housing color specifications. Ensure that the selected variant matches the required 4.2 mm pitch and 22-position count for your PCB layout. Cross-reference the datasheet for precise mating force and retention requirements before finalizing procurement orders.

Selection Notes

Select this component when high current capacity and robust mechanical stability are required for vertical power connections. The 4.2 mm pitch accommodates larger conductors compared to standard signal headers. Verify that the LCP housing material meets the thermal and chemical resistance requirements of the intended assembly process and operating environment.

Part Context

This part belongs to the Minitek Pwr 4.2 family, which provides high-current interconnect solutions. The series offers various position counts and mounting styles to support diverse power distribution needs. The 10131319-22121G0LF specifically addresses applications requiring a 22-position vertical interface with durable gold contacts.
