Product Detailed Parameters

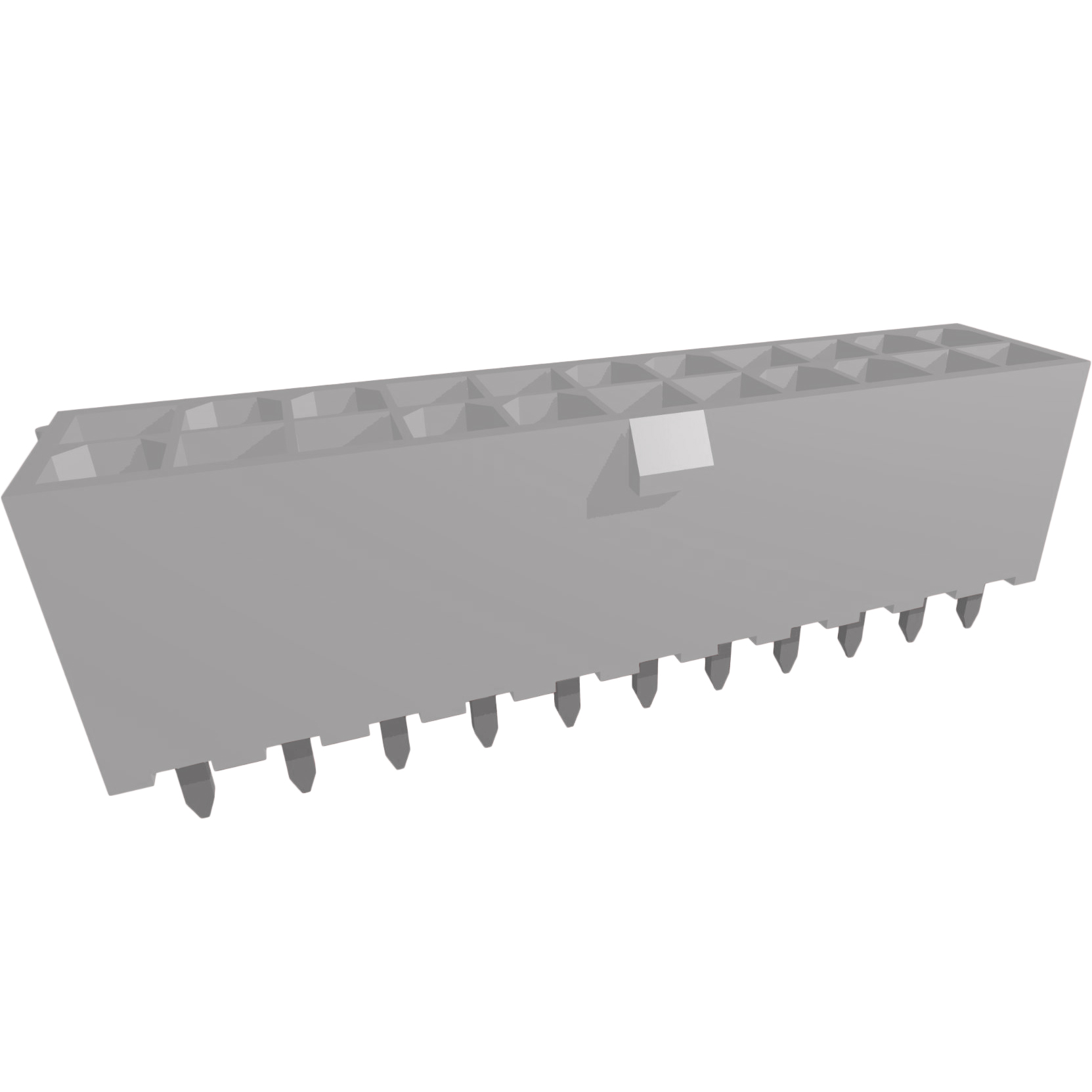

- Description：CONN HEADER VERT 22POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：22
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) 10131319-2221100LF is a Minitek Power4.2HCC DR VTH HDR connector designed for power-to-board applications. It features a 22-position, dual-row configuration with a 4.2 mm pitch. The header utilizes tin-plated copper contacts and natural insulation, rated for 12.5 A current and operation between -40°C and +105°C. This vertical through-hole component ensures reliable high-current distribution in compact electronic assemblies.
Feature Summary
- Dual-row high-current power distribution architecture
- Vertical through-hole mounting for board integration
- Tin-plated contact system for corrosion resistance
Applications
- Server and storage equipment power buses
- Industrial control system power distribution
- Telecommunications infrastructure power modules
Procurement Notes
Verify the specific suffix against official Amphenol documentation to confirm plating and packaging details. Confirm RoHS compliance status and moisture sensitivity level prior to assembly. Ensure the vertical header orientation matches the target PCB footprint requirements for proper mechanical engagement.
Selection Notes
Select this component when a high-density, dual-row power connection is required on a single PCB layer. The 4.2 mm pitch accommodates substantial current loads while maintaining a low profile. Verify that the 12.5 A rating per contact aligns with the system's thermal and electrical design constraints.
Part Context
This part belongs to the Minitek Power4.2 series, a specialized line of power connectors from Amphenol FCI. The series is engineered for robust power delivery in space-constrained environments, offering a balance of high current capacity and mechanical stability for demanding industrial and data center applications.
Replacement Considerations
Consult official cross-reference lists for direct substitutes. Verify that any alternative maintains the identical 4.2 mm pitch, 22-position count, and dual-row vertical configuration to ensure mechanical compatibility.
