Product Detailed Parameters
- Description：CONN HEADER VERT 22POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：22
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

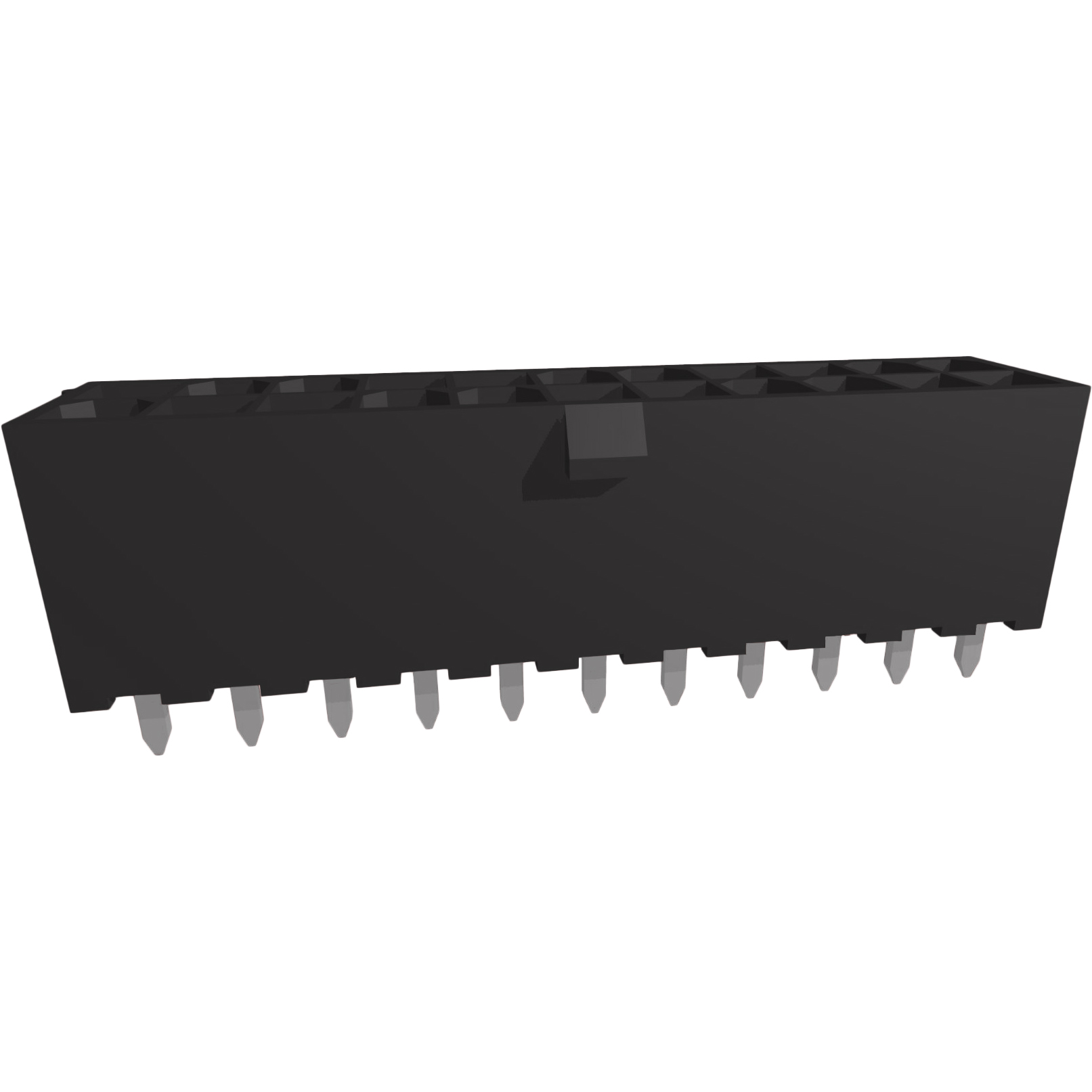

The Amphenol ICC (FCI) part number 10131319-22211G0LF is a Minitek Power4.2HCC double-row vertical header designed for power-to-board applications. It features 22 positions with a 4.2 mm pitch and utilizes tin-plated copper contacts. The connector supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C. It offers an insulation resistance of 1 GOhm and is supplied in reel packaging.
Feature Summary
- Double-row vertical configuration for high-density power distribution
- Tin-plated contacts provide reliable conductivity
- Designed specifically for power-to-board interconnects
Applications
- Power distribution modules
- Industrial control systems
- Telecommunications equipment
Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating and row configuration. Ensure the selected variant matches the required current rating and thermal specifications for the target application environment. Confirm availability status as supply conditions may vary.
Selection Notes
Select this component when a double-row vertical header is required for power applications. The 4.2 mm pitch accommodates higher current loads compared to smaller pitches. Verify that the tin plating meets the environmental requirements, as gold-plated alternatives exist within the same series for different corrosion resistance needs.
Part Context
This connector belongs to the MinitekPwr 4.2 series by Amphenol ICC (FCI). The series provides robust power interconnect solutions characterized by a 4.2 mm spacing. This specific model represents a standard vertical header option within the broader product family designed for board-level power delivery.
Replacement Considerations
Consult official substitution lists for compatible headers within the MinitekPwr 4.2 series. Verify pin count, pitch, and termination method before replacing. Cross-reference with other manufacturers offering similar power-to-board vertical headers if sourcing constraints apply.
