Product Detailed Parameters
- Description：CONN HEADER VERT 22POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：22
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

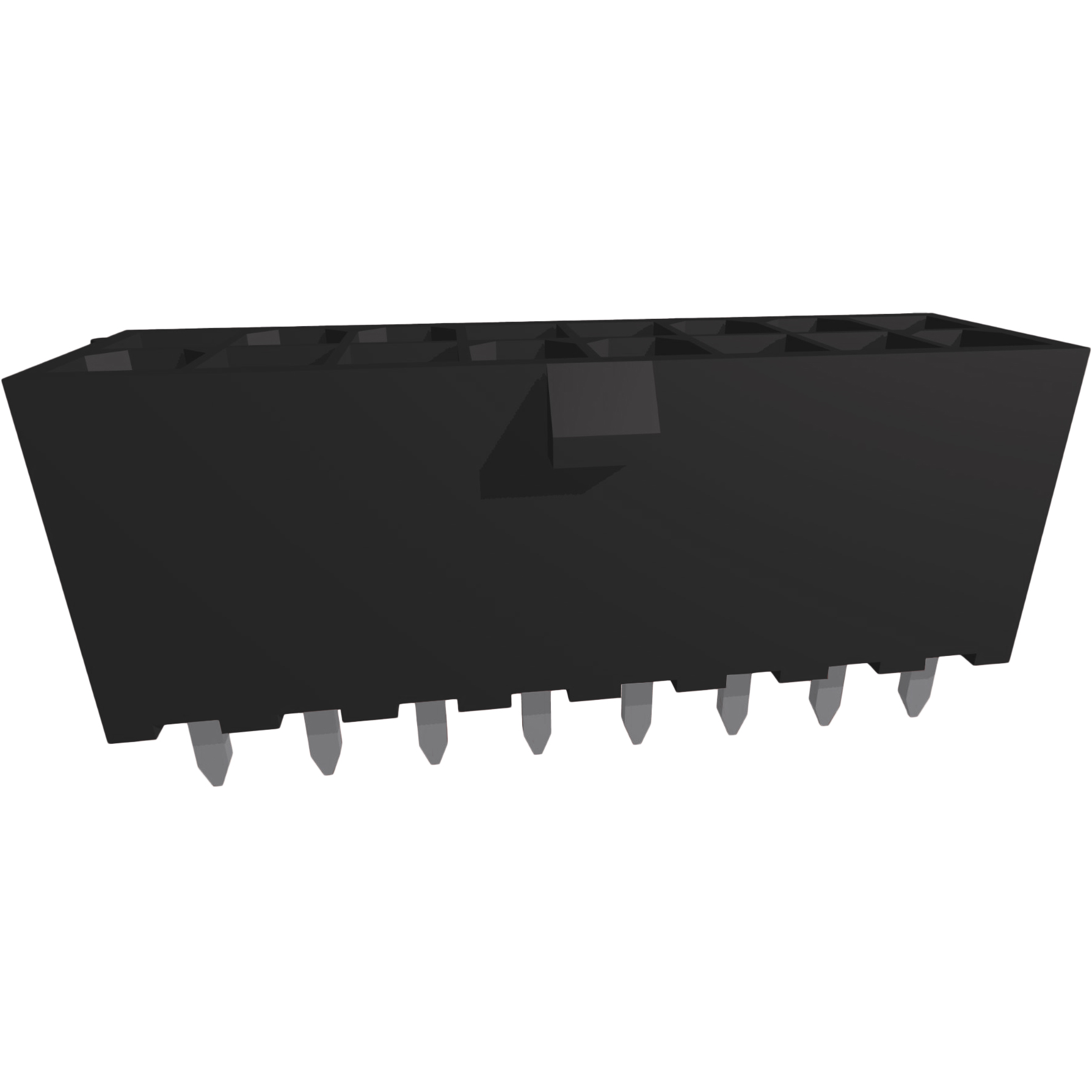

The Amphenol ICC (FCI) part number 10131319-2222100LF is a Minitek Power4.2HCC DR VTH HDR connector designed for power-to-board applications. It features a 12-position configuration with a 4.2 mm pitch and dual-row vertical mounting. The contacts are made of copper alloy with a tin finish, rated for 12.5 A current. The housing utilizes polyamide (PA66) or nylon 6/6 insulation, supporting an operating temperature range from -40°C to +105°C.
Feature Summary
- Dual-row vertical header design optimized for high-current power distribution
- Tin-plated copper alloy contacts ensure reliable electrical conductivity
- Polyamide or nylon 6/6 insulation provides thermal stability up to 105°C
Applications
- Power distribution in server infrastructure
- Data storage system power connections
- Telecommunications equipment power interfaces
Procurement Notes
Verify the specific suffix requirements with the manufacturer, as ordering codes may dictate packaging or material variations. Confirm lead times and factory order constraints directly with authorized distributors, as availability can vary by region and production schedule.
Selection Notes
Select this component when a vertical, dual-row power header with a 4.2 mm pitch is required. Ensure the application demands a 12.5 A rating per contact and operates within the -40°C to +105°C temperature range. Verify that the tin contact finish aligns with soldering and mating cycle requirements.
Part Context
This connector belongs to the Minitek Power4.2 series, a line of robust power connectors from Amphenol FCI. The series is engineered for dense power delivery in compact form factors, commonly utilized in demanding environments such as data centers and industrial control systems where reliability is critical.
Replacement Considerations
Direct substitutes include 10131319-122110RLF and 10131319-1222100LF. These variants share the same 12-position, 4.2 mm pitch, and vertical dual-row architecture. Verify compatibility regarding contact plating and insulation material specifications before substitution.
