10131319-22221G0LF

Overview

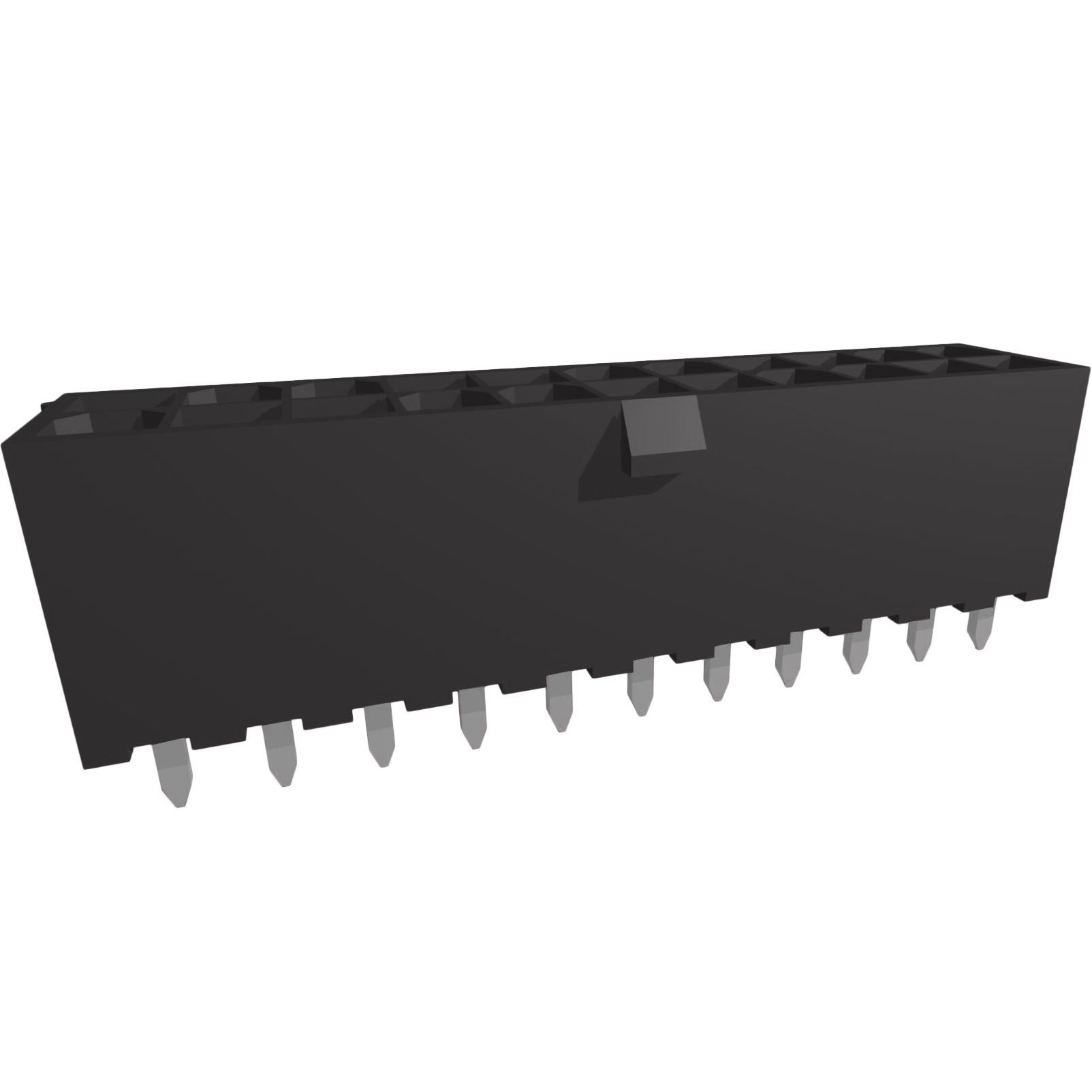

The Amphenol ICC (FCI) part number 10131319-22221G0LF is a Minitek Pwr 4.2 High Current header connector designed for power-to-board applications. It features a vertical through-hole mounting style with a 4.20 mm (0.165 inch) pitch. The component has 22 positions arranged in a double row configuration, utilizing male pin contacts made of copper with gold plating. It operates within a temperature range of -40°C to +105°C and is RoHS compliant.

Feature Summary

• High current capacity design within the Minitek Pwr 4.2 series
• Vertical through-hole termination for secure board attachment
• Gold-plated copper contacts for reliable conductivity
• Double-row layout maximizing density in compact spaces

Applications

• Power distribution modules
• Industrial control systems
• Telecommunications infrastructure

Procurement Notes

Verify the specific ordering suffix and contact count against official Amphenol documentation before purchase. Confirm that the gold plating specification matches the application requirements. Ensure the vertical header form factor aligns with the PCB layout constraints. Check for active status and availability through authorized distributors.

Selection Notes

Select this connector when high current handling is required alongside a compact footprint. The 4.2 mm pitch allows for robust power transmission compared to smaller signal connectors. The vertical orientation simplifies assembly processes. Consider the double-row arrangement for efficient space utilization in dense power architectures.

Part Context

This component belongs to the Minitek Pwr 4.2 series, which focuses on high-density power connections. The series is engineered for applications demanding reliable power delivery in limited spaces. The specific model provides a standardized solution for integrating power sources directly onto circuit boards in various electronic systems.

Replacement Considerations

Compatible substitutes include other Minitek Pwr 4.2 headers with matching pin counts and vertical mounting styles. Verify that alternative parts maintain the same 4.2 mm pitch and gold contact specifications to ensure interchangeability without redesigning the PCB.
