Product Detailed Parameters

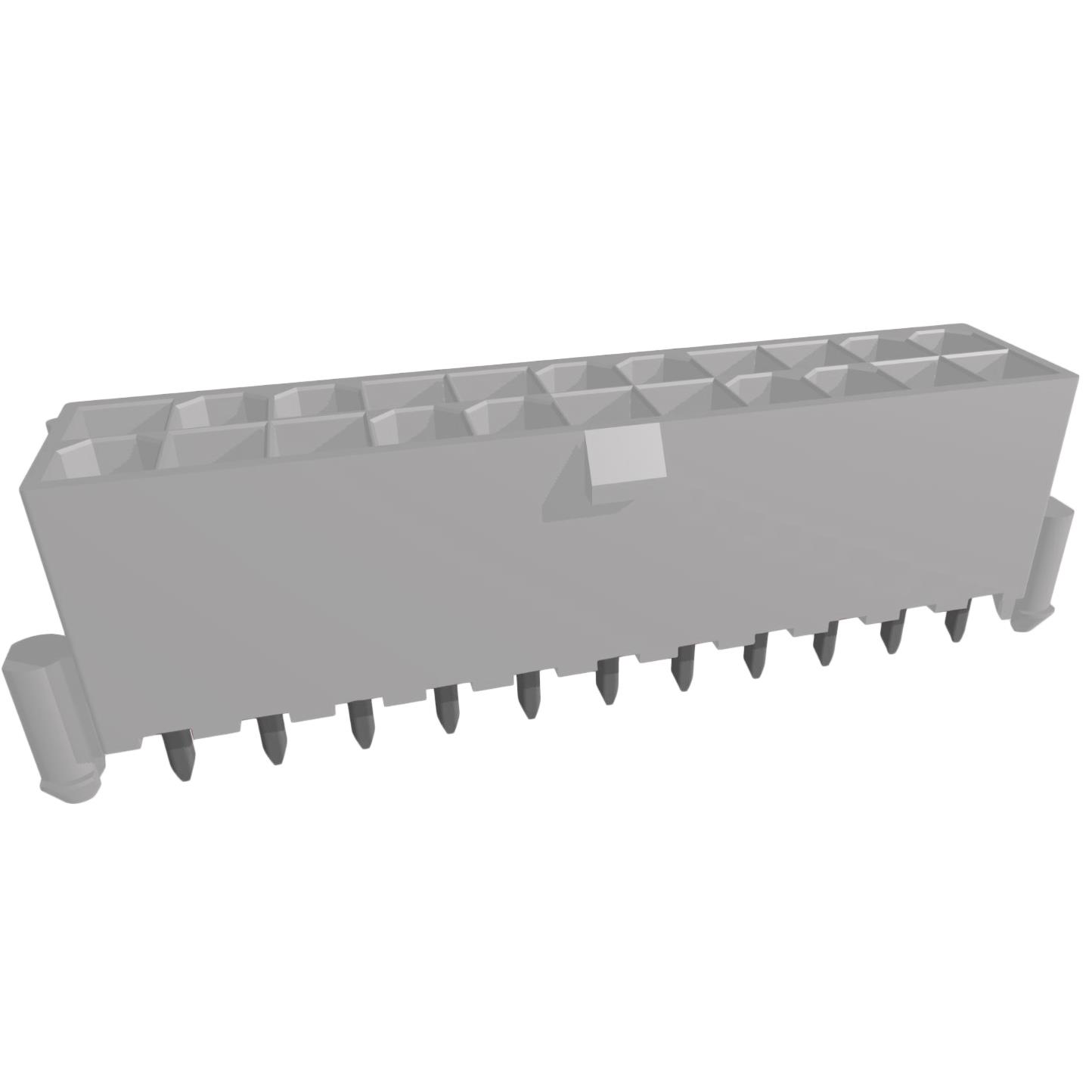

- Description：10131319-224120PLF-MTK 4.2 22P D
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：22
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The 10131319-224120PLF is a Minitek Power 4.2 series power-to-board header manufactured by Amphenol ICC (FCI). It features 22 positions with a 4.2 mm pitch and supports dual rows of vertical through-hole termination. The contacts are copper alloy with 30 microinches of gold plating, rated for 12.5 A current at +105°C maximum operating temperature. This component provides reliable electrical interconnection for high-current applications.
Feature Summary
- Dual-row vertical header configuration for board-to-wire connectivity
- Gold-plated contacts ensure stable signal transmission and corrosion resistance
- High current rating suitable for demanding power distribution requirements
Applications
- Industrial control systems requiring robust power connections
- Telecommunications infrastructure equipment
- Server and storage system power distribution boards
Procurement Notes
Verify the specific ordering suffix to confirm contact plating thickness and material composition. Ensure the selected variant matches the required current rating and thermal performance specifications for the target application environment. Confirm availability status as product lifecycle changes may affect supply chain stability.
Selection Notes
Select this connector when a 4.2 mm pitch is required for high-current power delivery. Verify that the PCB layout accommodates the dual-row vertical footprint and that the mating wire gauge aligns with the 12.5 A rating. Consider environmental factors such as operating temperature range up to +105°C during design integration.
Part Context
This component belongs to the Minitek Power 4.2 family, designed for power-to-board applications. It complements other connectors in the series offering various position counts and termination styles. The series emphasizes high current capacity and reliability for industrial and telecommunications sectors.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate cross-referencing with other Amphenol FCI power headers or industry-standard equivalents based on mechanical dimensions and electrical ratings if direct replacement is necessary.
