10131319-2411100LF

Overview

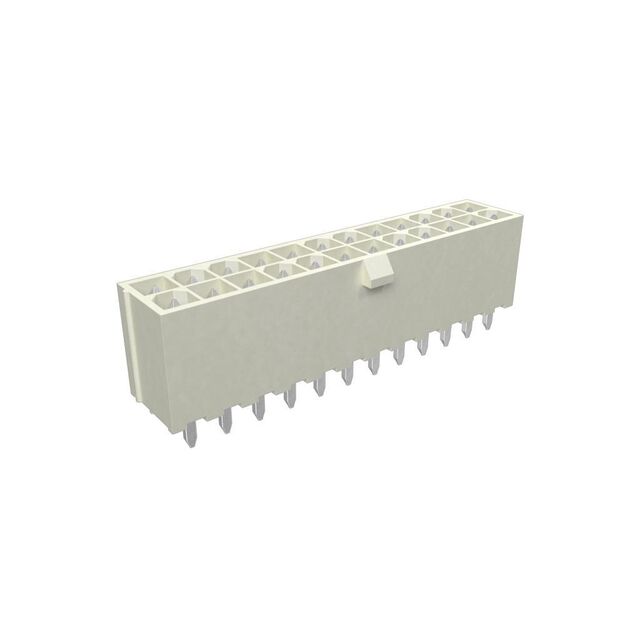

The Amphenol ICC (FCI) part number 10131319-2411100LF is a Minitek Pwr 4.2 Higher Current Connector (HCC) header designed for power-dense applications. It features a vertical through-hole mounting style with 24 positions and a 4.20mm pitch. The connector supports current ratings up to 13.5A per contact, ensuring reliable performance in demanding environments.

Feature Summary

• Designed for high current density applications
• Vertical through-hole termination for secure board attachment
• Minitek Pwr 4.2 series construction for robust electrical connections

Applications

• Power distribution systems
• High current data communication equipment
• Server and storage device power interfaces

Procurement Notes

Verify the specific suffix and plating requirements against the official datasheet before ordering. Confirm that the 24-position configuration matches the target PCB footprint. Ensure compatibility with the intended current load and thermal management strategy for the application environment.

Selection Notes

Select this component when high current capacity per contact is required within a compact form factor. The 4.20mm pitch allows for substantial conductor sizing compared to smaller pitches. Consider the vertical orientation for direct board-to-board or cable-to-board power delivery needs.

Part Context

This connector belongs to the Minitek Pwr 4.2 HCC family from Amphenol FCI. The series is engineered to provide higher current capabilities than standard connectors, making it suitable for modern electronics where space efficiency and power delivery are critical constraints.

Replacement Considerations

Consult official substitution lists for equivalent 24-position, 4.20mm pitch headers. Verify mechanical dimensions and current ratings match if considering alternative manufacturers.
