10131319-24111G0LF

Overview

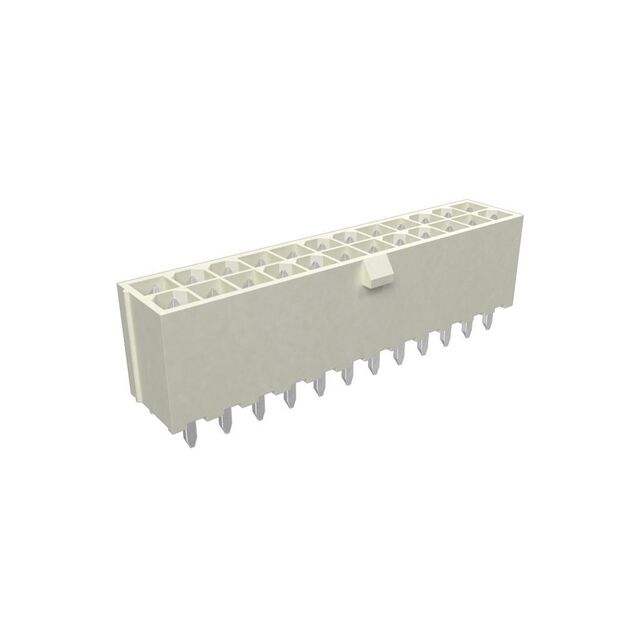

The Amphenol ICC (FCI) 10131319-24111G0LF is a Minitek Pwr 4.2 Higher Current Connector (HCC) header designed for power-dense applications. It features a 4.2 mm pitch, 24 positions in a dual-row configuration, and a vertical through-hole mounting style. The contacts are gold-plated copper pins rated for up to 13.5 A per contact. Operating within a temperature range of -40°C to +105°C, this component utilizes a black housing and is supplied in trays.

Feature Summary

• Higher current capacity design supporting up to 13.5 A per contact
• Dual-row vertical header with 4.2 mm mating pitch
• Gold-plated male pin contacts for reliable conductivity

Applications

• Industrial factory automation systems
• Alternative and traditional energy generation equipment
• Power distribution units
• Heavy equipment instrumentation

Procurement Notes

Verify the specific ordering suffix 'G0' confirms the gold plating requirement against your design specifications. Confirm that the tray packaging format aligns with your automated assembly line capabilities. Ensure the vertical through-hole termination method matches your PCB layout constraints before finalizing procurement orders.

Selection Notes

Select this part when high current density is required in a compact vertical form factor. The 4.2 mm pitch allows for robust contact spacing suitable for significant power loads. Verify that the 24-position dual-row count meets the board's power routing needs without exceeding available footprint dimensions.

Part Context

This component belongs to the Minitek Pwr 4.2 series, engineered specifically for industrial interconnect solutions. It addresses the demand for reliable power delivery in space-constrained environments such as IoT devices, LED lighting, and smart manufacturing infrastructure where standard connectors may lack sufficient current handling.

Replacement Considerations

No public confirmed substitute part numbers are documented.
