10131319-2412100LF

Overview

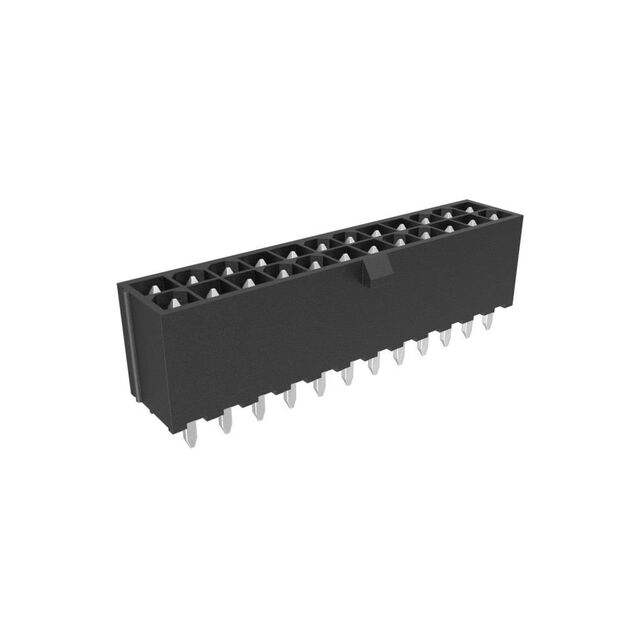

The Amphenol ICC (FCI) part number 10131319-2412100LF is a Minitek Power 4.2 series power-to-board connector header. It features a 24-position configuration with a 4.2 mm pitch and operates in a dual-row arrangement. The component utilizes through-hole vertical mounting for secure PCB integration. Electrical specifications include a current rating of 12.5 A and an insulation resistance of 1 GOhms. The housing is constructed from natural-colored material, while contacts are made of copper with gold plating. The unit supports an operating temperature range from -40°C to +105°C.

Feature Summary

• Dual-row header design optimized for high-current power distribution applications
• Vertical through-hole termination ensures stable mechanical connection to the printed circuit board
• Gold-plated copper contacts provide reliable conductivity and corrosion resistance
• High insulation resistance maintains electrical safety under operational stress

Applications

• Power distribution modules in server infrastructure
• Industrial equipment power supply interfaces
• Telecommunications base station power connections
• Data center power delivery systems

Procurement Notes

Verify the specific ordering suffix and environmental compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the requested quantity aligns with factory order requirements and standard packaging constraints. Ensure compatibility with existing assembly processes and verify lead times for production scheduling.

Selection Notes

Select this component when a robust, high-current power interface is required for vertical board-to-board connections. The 4.2 mm pitch accommodates substantial conductors, making it suitable for demanding power delivery scenarios. Evaluate the thermal performance limits and mechanical stability requirements against the connector's rated operating temperature and current capacity.

Part Context

This connector belongs to the Minitek Power 4.2 family, designed by Amphenol FCI for heavy-duty power applications. The series emphasizes durability and high current handling capabilities within compact form factors. It serves as a critical interconnect solution in environments requiring reliable power transmission between system components and main circuit boards.

Replacement Considerations

Cross-reference with other Minitek Power 4.2 series headers sharing identical pin counts and pitch dimensions. Verify mechanical footprint and electrical ratings match before substituting. Consult official Amphenol documentation for approved alternative part numbers within the same product line.
