10131319-24121G0LF

Overview

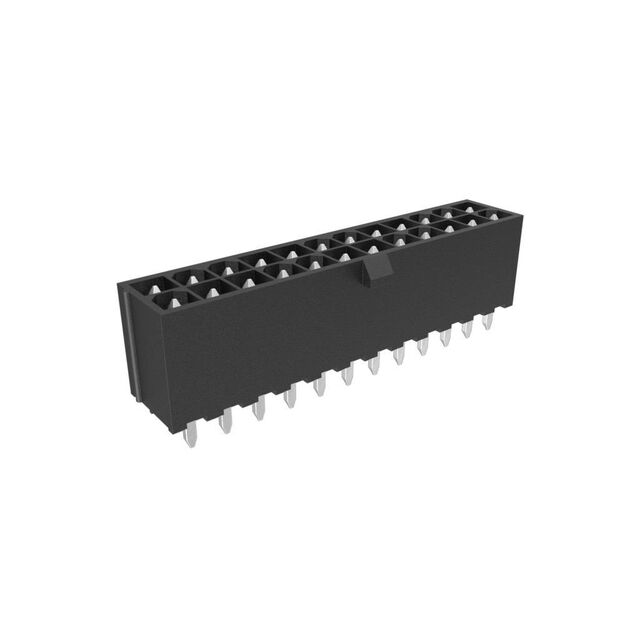

The Amphenol ICC (FCI) part number 10131319-24121G0LF is a vertical header connector belonging to the Minitek Pwr 4.2 series. It features 24 positions with a 4.20mm pitch and utilizes through-hole termination. The contacts are gold-plated, and the housing is designed for board-to-board or power-to-board applications.

Feature Summary

• Vertical pin configuration for standard PCB mounting
• Gold contact plating for reliable signal transmission
• High-current capacity design suitable for power distribution

Applications

• Power supply interconnects
• Industrial control systems
• Telecommunications equipment

Procurement Notes

Verify the exact suffix against the manufacturer's current catalog to confirm availability and compliance status. Ensure the ordering code matches the specific pin count and termination style required for your assembly. Cross-reference with official distributor listings to validate the part number authenticity before procurement.

Selection Notes

Select this component when a 4.2mm pitch vertical header is required for high-current applications. Confirm that the 24-position layout aligns with the target PCB footprint. Verify that the operating temperature range and voltage ratings meet the system specifications for safe operation.

Part Context

This connector is part of the Minitek Pwr 4.2 family, designed for robust power connections in compact spaces. The series offers various position counts and configurations to support diverse electronic packaging needs within the Amphenol ICC portfolio.

Replacement Considerations

Check for direct substitutes within the same Minitek Pwr 4.2 series with identical pin counts. Verify mechanical compatibility and electrical ratings before considering alternative manufacturers. Consult the manufacturer's cross-reference guide for approved replacements.
