Product Detailed Parameters

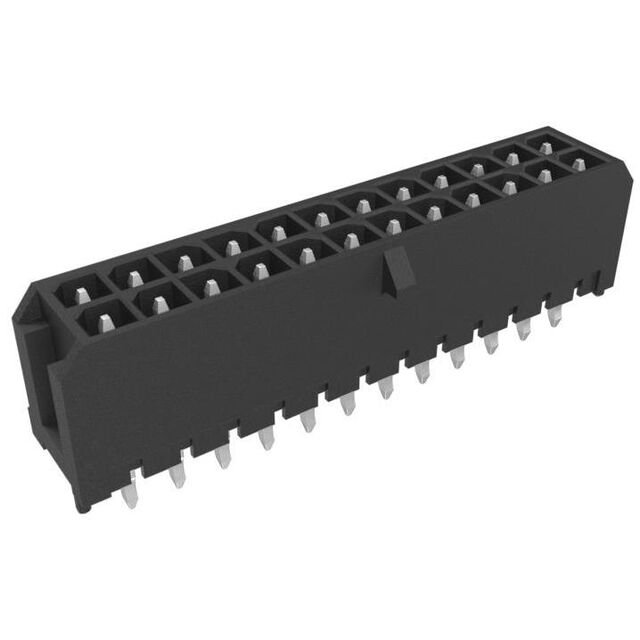

- Description：10131319-241220RLF-MTK 4.2 24P D
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock, Pick and Place
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-241220RLF is a Minitek Pwr 4.2 High Current connector designed for power-dense applications. It features a 24-position, double-row header with a 4.2 mm pitch and vertical through-hole mounting. The contacts are tin-plated copper rated for 12.5 A per contact. The housing is natural-colored LCP with an operating temperature range of -40°C to +105°C.
Feature Summary
- High current capacity up to 13.5A per contact
- Vertical double-row board-to-board configuration
- Tin-plated copper contacts for reliable conductivity
Applications
- Industrial automation systems
- Power distribution units
- Heavy equipment instrumentation
Procurement Notes
Verify the specific ordering suffix against official documentation to confirm plating and packaging details. Confirm RoHS compliance status and lead times directly with the manufacturer or authorized distributors before finalizing procurement plans.
Selection Notes
Select this component for high-density power routing requiring vertical orientation. Ensure PCB layout accommodates the 4.2 mm pitch and double-row spacing. Verify thermal management requirements align with the 105°C maximum operating temperature rating.
Part Context
This connector belongs to the Minitek Pwr 4.2 series, engineered for demanding industrial environments. It provides robust power delivery solutions suitable for applications requiring high current density in compact form factors.
Replacement Considerations
Consult official substitution guides for compatible alternatives within the Minitek Pwr 4.2 family. Verify pin count, pitch, and mounting style compatibility before considering any substitute components.
