10131319-24122GRLF

Description：CONN HEADER VERT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:87f7dd7a0f0d Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Lock, Glow Wire Compliant, Pick and Place
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10131319-24122GRLF

Overview

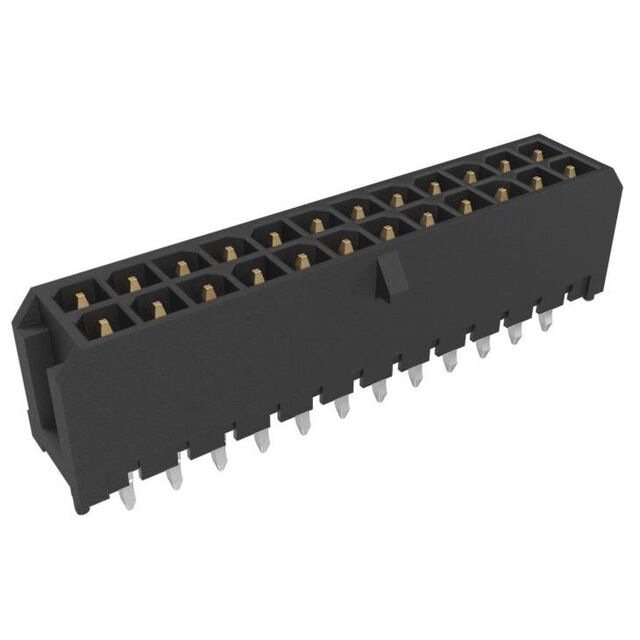

The 10131319-24122GRLF is a Minitek Pwr 4.2 series power-to-board connector header manufactured by Amphenol ICC (FCI). It features 24 positions with a 4.2 mm pitch, designed for through-hole right-angle mounting. The component utilizes gold-plated copper contacts and an LCP housing rated for 600 VAC and 12.5 A current. Operating temperature ranges from -40°C to +105°C.

Feature Summary

High-current power delivery capability up to 12.5 A per contact
Right-angle through-hole mounting for board-to-board integration
Gold-plated copper contacts ensuring reliable conductivity
LCP housing material providing thermal stability

Applications

Power distribution in industrial equipment
Server and storage system power interfaces
Telecommunications infrastructure power connections
High-power consumer electronics assembly

Procurement Notes

Verify part availability as the product may be subject to discontinuation or limited stock. Confirm RoHS compliance and specific packaging quantities with the manufacturer or authorized distributors prior to ordering. Ensure compatibility with mating receptacles and PCB layout requirements.

Selection Notes

Select this connector for applications requiring high current capacity in a compact form factor. The 4.2 mm pitch supports robust power transmission. Consider the right-angle orientation for space-constrained designs. Verify voltage ratings against system requirements to ensure safe operation within the 600 VAC limit.

Part Context

This component belongs to the Minitek Pwr 4.2 series, designed for high-power applications. It complements other headers and receptacles in the same family, offering standardized dimensions and electrical characteristics for consistent system integration across various electronic platforms.
