Product Detailed Parameters

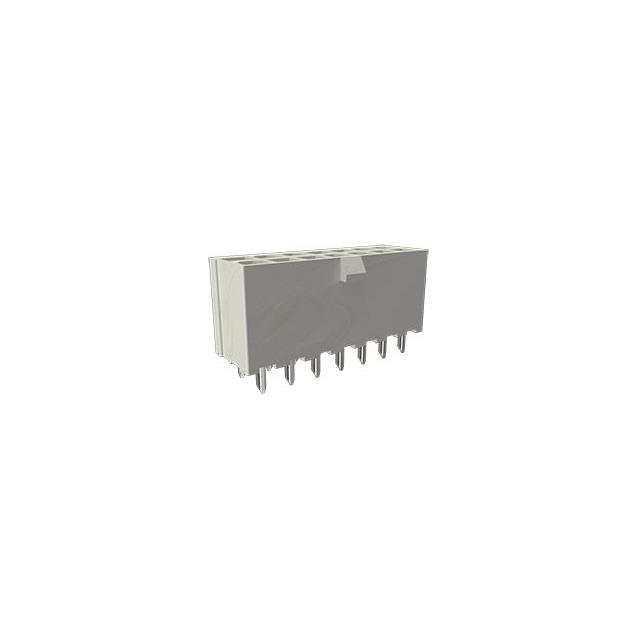

- Description：CONN HEADER VERT 24POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-2421100LF is a Minitek Pwr 4.2 Higher Current Connector (HCC) header designed for power-dense applications. It features a 24-position, two-row configuration with a 4.2 mm pitch. The connector utilizes through-hole vertical termination and copper contacts plated with tin. Rated for up to 13.5 A per contact, it operates within a temperature range of -40°C to +105°C. The housing is natural-colored thermoplastic with a UL94 V-0 flammability rating.
Feature Summary
- Supports high current density with ratings up to 13.5 A per contact
- Integrates signal and power connections in a compact two-row layout
- Utilizes through-hole vertical mounting for secure board attachment
Applications
- Power distribution modules in server infrastructure
- High-density storage system backplanes
- Telecommunications equipment power interfaces
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm plating type and packaging format. Confirm RoHS compliance status as indicated in the latest datasheet revision. Ensure compatibility with mating receptacles from the same Minitek Pwr 4.2 series before procurement.
Selection Notes
Select this component when high current capacity is required alongside space-constrained layouts. The 4.2 mm pitch allows for robust power traces while maintaining a low profile. Verify that the operating environment remains within the specified thermal limits and that the through-hole process aligns with manufacturing capabilities.
Part Context
This connector belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), a line engineered for demanding power delivery scenarios. The series combines signal integrity with high-current handling, serving data communication and industrial markets. It represents a specialized solution for integrating power and data in dense electronic assemblies.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative connectors only if they match the 4.2 mm pitch, 24-position count, and 13.5 A current rating specifications.
