10131319-242110PLF

Description：CONN HEADER VERT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:2ab0125f43c5 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：Board Lock
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10131319-242110PLF

Overview

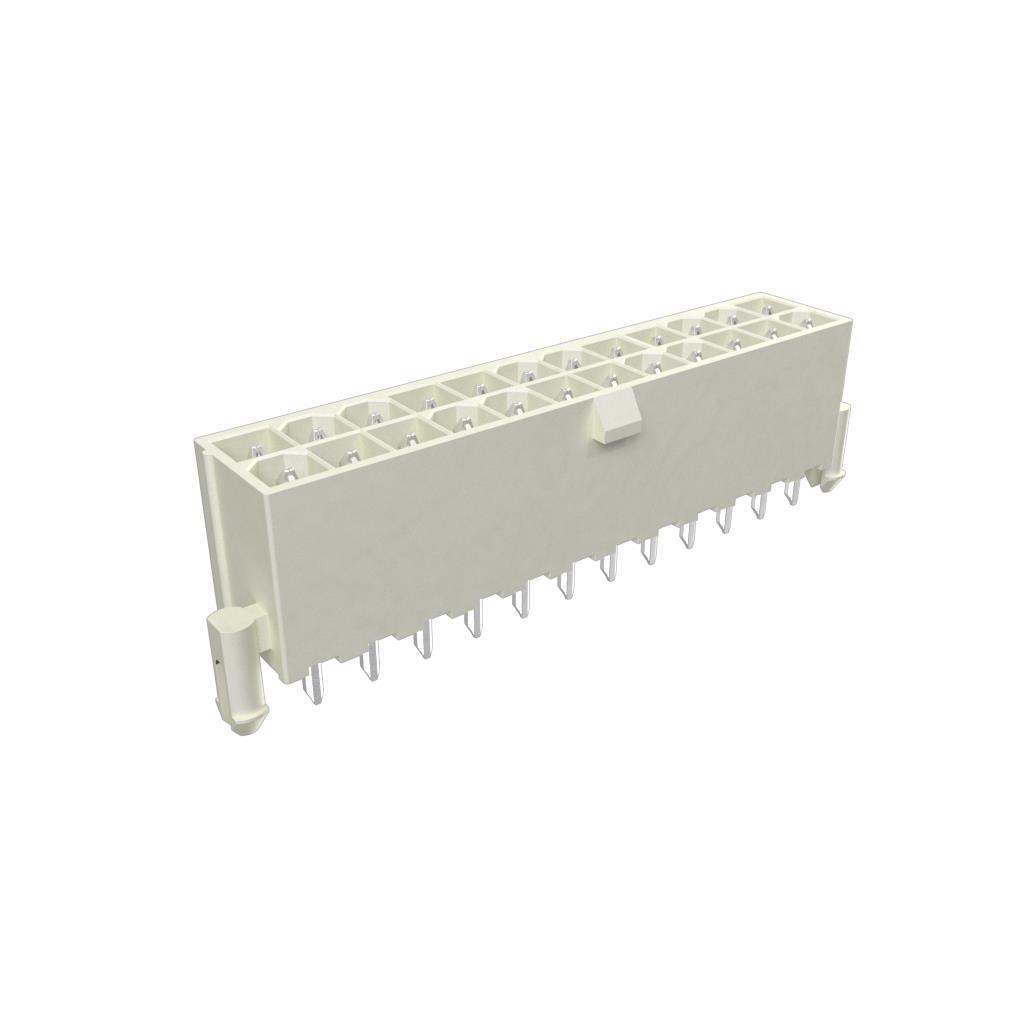

The Amphenol ICC (FCI) part number 10131319-242110PLF is a Power to the Board connector from the MinitekPwr 4.2 series. It features a vertical header configuration with 24 positions and a 4.2 mm pitch. The connector utilizes copper alloy contacts with tin plating and a natural-colored polyamide insulation material rated UL94 V-0 for flammability. Designed for through-hole mounting, it supports a voltage rating of 600VAC/DC and operates within a temperature range of -40°C to +105°C.

Feature Summary

Vertical board-to-board power distribution design
High current capacity suitable for power applications
Tin-plated contacts for reliable conductivity

Applications

Server and storage equipment power distribution
Telecommunications infrastructure power modules
Industrial control system power interfaces

Procurement Notes

Verify the specific suffix PLF confirms tin plating rather than gold when sourcing. Confirm the 24-position count matches the target PCB footprint. Ensure the vertical orientation aligns with assembly requirements. Check RoHS compliance status against current manufacturing updates. Validate operating temperature limits for the intended thermal environment.

Selection Notes

Select this component for high-power density applications requiring robust vertical interconnects. The 4.2mm pitch accommodates substantial current loads compared to smaller signal connectors. Tin plating offers cost-effective durability for general power routing. Consider mating receptacle compatibility within the MinitekPwr ecosystem. Evaluate thermal management needs given the 105°C maximum rating.

Part Context

This connector belongs to the MinitekPwr 4.2 series by Amphenol ICC (FCI), designed for power delivery in compact electronic systems. The series provides reliable connections for servers, storage, and telecom equipment. The 24-position variant offers balanced power distribution for mid-range load requirements.
