Product Detailed Parameters
- Description：CONN HEADER VERT 24POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

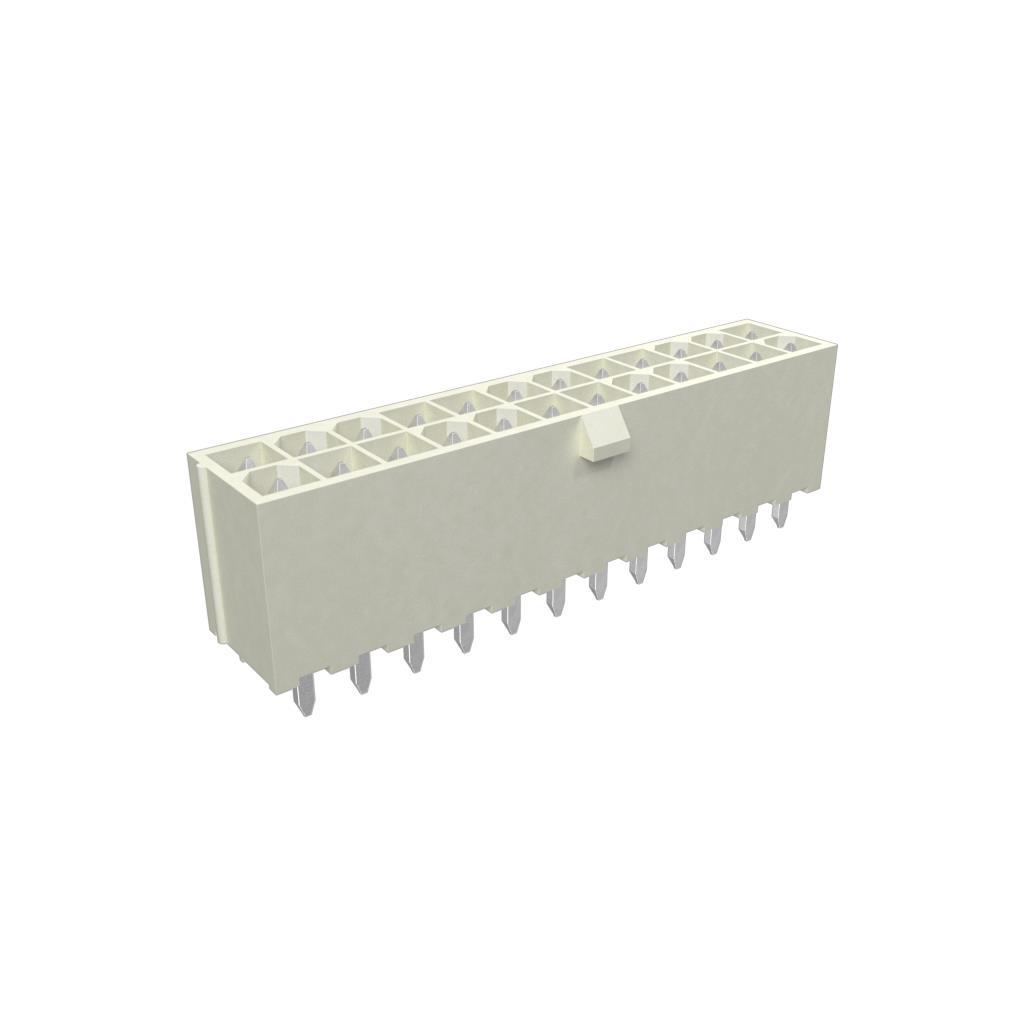

The Amphenol ICC (FCI) 10131319-24211G0LF is a Minitek Pwr 4.2 High Current header connector designed for power-to-board applications. It features a vertical through-hole mounting style with a 4.2 mm pitch and 24 positions arranged in a dual-row configuration. The contacts are constructed from copper and plated with gold to ensure reliable conductivity. This component operates within a temperature range of -40°C to +105°C, providing robust performance for high-current distribution systems.
Feature Summary
- Dual-row vertical header design for compact high-current power routing
- Gold-plated copper contacts for enhanced corrosion resistance and signal integrity
- High current capacity supported by the Minitek Pwr 4.2 series architecture
Applications
- Server and storage equipment power distribution
- Telecommunications infrastructure power modules
- Industrial control system board-to-board connections
Procurement Notes
Verify the specific ordering suffix and plating thickness when sourcing this component, as variations exist within the Minitek Pwr 4.2 family. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer, as availability may vary by region and production batch.
Selection Notes
Select this part for applications requiring high current density in a vertical form factor. Ensure the PCB footprint matches the 4.2 mm pitch and dual-row layout. Consider thermal management requirements given the operating temperature range and current ratings associated with the Minitek Pwr 4.2 series.
Part Context
This connector belongs to the Minitek Pwr 4.2 High Current series by Amphenol FCI, now part of Amphenol ICC. The series is engineered for demanding power delivery environments, offering durability and low profile designs suitable for modern electronic systems requiring efficient space utilization and reliable electrical connections.
Replacement Considerations
Direct substitutes within the same series include 10131319-04211G0LF (4-position) and 10131319-08421G0LF (8-position). Verify pin count and pitch compatibility before substitution.
