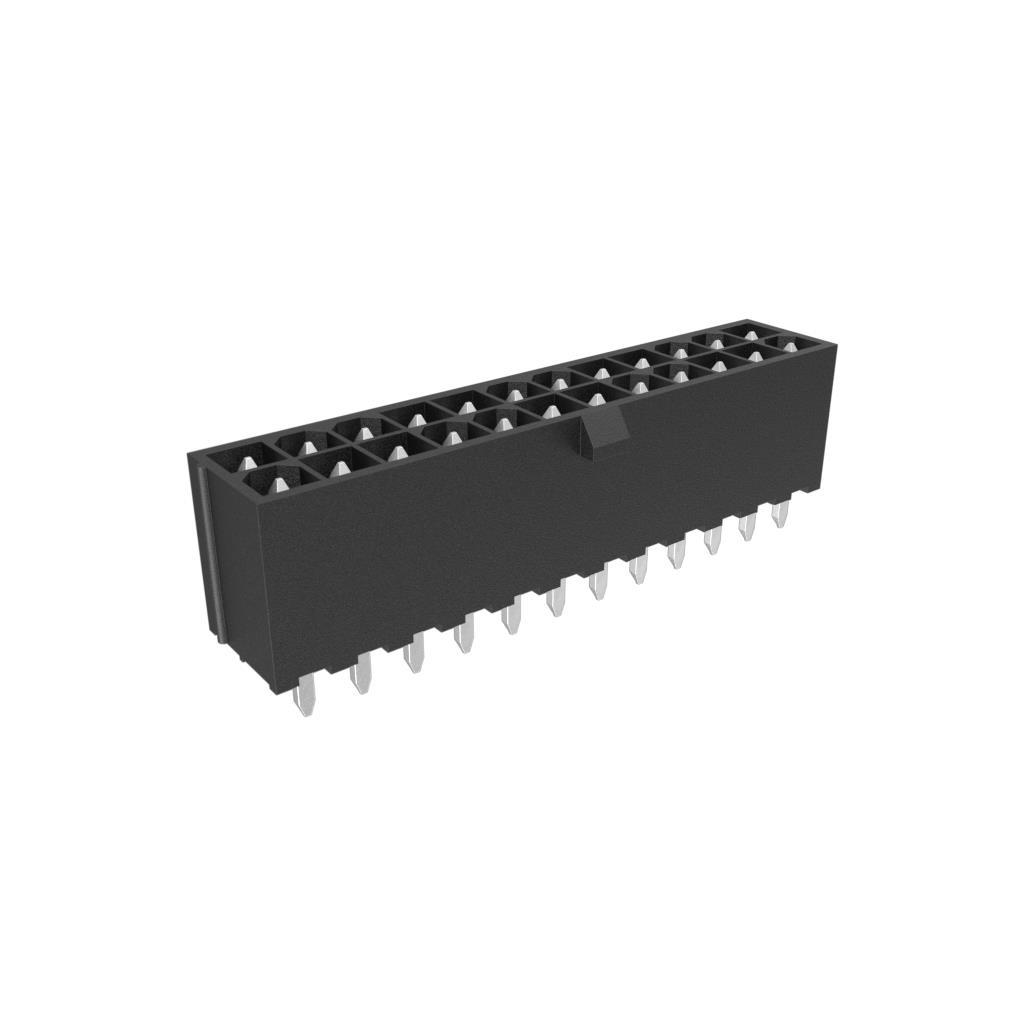

10131319-2422100LF

Description：CONN HEADER VERT 24POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:55b8e6d83d65 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 24POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10131319-2422100LF

Overview

The Amphenol ICC (FCI) part number 10131319-2422100LF is a vertical power-to-the-board header connector belonging to the MinitekPwr 4.2 series. It features 24 positions with a 4.2 mm pitch and is designed for through-hole mounting. The connector utilizes tin-plated copper contacts and has a natural-colored housing. Rated for 12.5 A current, it operates within a temperature range of -40°C to +105°C. This component provides reliable electrical connections for high-power applications in data communication and industrial systems.

Feature Summary

Supports signal and PoE++ transmission capabilities
Vertical through-hole installation for board integration
Tin-plated copper contact construction for durability

Applications

Data communication equipment
Industrial application systems
Power distribution boards

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct plating and housing specifications. Confirm that the tin finish meets the required environmental standards for the intended deployment environment. Cross-reference the 4.2 mm pitch requirement with existing board layouts to guarantee mechanical compatibility during assembly processes.

Selection Notes

Select this component when a high-current vertical header is required for power delivery. The 4.2 mm pitch accommodates substantial conductors compared to standard signal headers. Ensure the operating temperature range up to 105°C aligns with the thermal profile of the target system. Verify that the through-hole termination method matches the manufacturing capabilities of the printed circuit board.

Part Context

This connector is part of the MinitekPwr 4.2 series by Amphenol ICC (FCI), formerly Framatome Connectors International. The series focuses on power-to-the-board solutions, offering robust connectivity for server, storage, and communication infrastructure. Amphenol acquired FCI, continuing the lineage of high-density and high-reliability interconnect solutions under the Amphenol Commercial brand.
