10131319-244110PLF

Overview

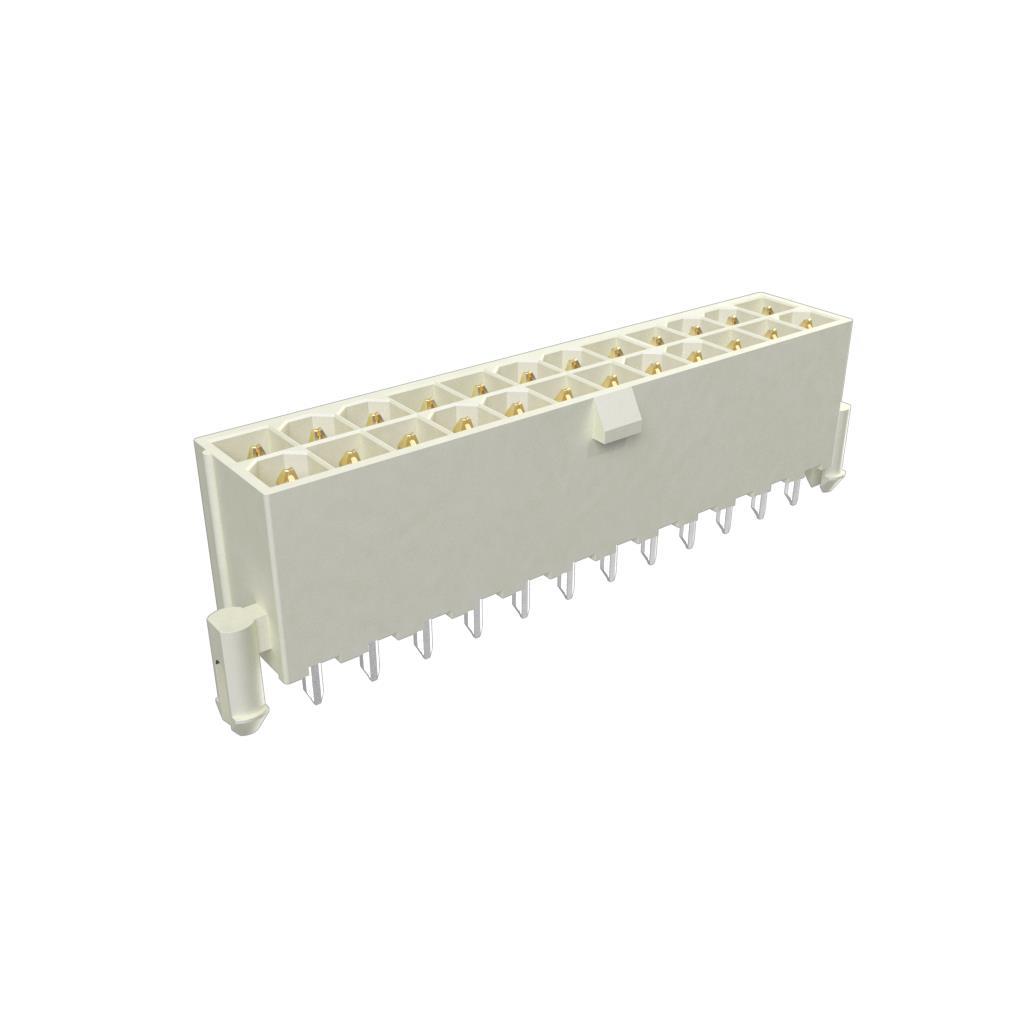

The Amphenol ICC (FCI) part number 10131319-244110PLF is a Minitek Power 4.2 series power-to-board connector. It features a double-row, vertical header configuration with 24 positions and a 4.2 mm pitch. The contacts are made of copper with tin plating, housed in a natural-colored insulator. Rated for 12.5 A per contact, it operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 1 GOhms.

Feature Summary

• Double-row vertical header design for board-to-board power distribution
• High current capacity of 12.5 A per contact utilizing tin-plated copper terminals
• Robust thermal performance supporting operation up to +105°C

Applications

• Server and storage system power distribution
• Telecommunications equipment power interfaces
• Industrial control board power connections

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm terminal plating and housing color specifications. Ensure compatibility with mating receptacles from the same Minitek Power 4.2 family. Confirm that the vertical mounting style aligns with the target PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when high-current power delivery is required in a compact vertical form factor. The 4.2 mm pitch allows for substantial conductor spacing compared to smaller signal connectors. Verify that the 12.5 A rating meets the circuit load requirements and that the operating temperature range covers the environmental conditions of the intended application.

Part Context

This connector belongs to the Minitek Power 4.2 family, designed for reliable power transmission in dense electronic assemblies. The series offers various position counts and row configurations to accommodate different power bus requirements while maintaining a standardized footprint and mechanical interface across the product line.

Replacement Considerations

Substitutes must match the 4.2 mm pitch, 24-position count, double-row vertical orientation, and 12.5 A current rating. Verify that alternative suppliers offer compatible tin-plated copper contacts and similar thermal ratings to ensure electrical and mechanical interchangeability.
