Product Detailed Parameters
- Description：CONN PWR4.2 RA HEADER
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

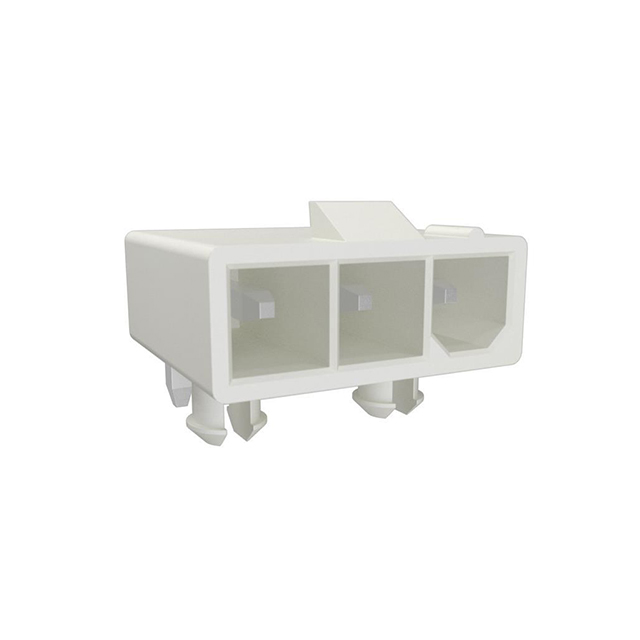

The Amphenol ICC (FCI) part number 10136646-03111LF is a Minitek Power 4.2 Series right-angle header connector designed for board-to-board power applications. It features a 3-position contact layout with a 4.2mm pitch and utilizes tin-plated terminals for reliable conductivity. The component is engineered for surface mount termination, ensuring secure attachment to printed circuit boards. Designed to operate within a temperature range of -40°C to 105°C, it meets UL94 V-0 flammability standards. This connector supports high-current distribution in compact electronic systems.
Feature Summary
- High-density power distribution capability via the Minitek Power 4.2 series architecture
- Right-angle surface mount design for optimized PCB space utilization
- Robust thermal performance rated for extreme operating environments
Applications
- Compact consumer electronics requiring efficient power routing
- Industrial control modules needing reliable board-to-board connections
- Telecommunications equipment utilizing dense power architectures
Procurement Notes
Verify the specific suffix requirements against your assembly drawings to ensure correct plating and orientation compatibility. Confirm that the surface mount footprint matches your PCB design guidelines precisely. Check for RoHS compliance status if your manufacturing process requires strict environmental adherence. Ensure storage conditions maintain terminal integrity before soldering.
Selection Notes
Select this component when space constraints necessitate a right-angle configuration for power delivery. Evaluate the 4.2mm pitch against existing system spacing requirements to guarantee mechanical fit. Consider the tin plating option for cost-effective solutions where gold plating is not strictly required for corrosion resistance. Assess current load requirements against the connector's rated capacity.
Part Context
This connector belongs to the Minitek Power family, known for providing robust power solutions in small form factors. The 4.2 series specifically targets applications demanding higher current capacities than standard signal connectors. As an FCI product, it integrates advanced engineering for signal integrity and mechanical durability in modern electronic assemblies.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific variant. Verify cross-compatibility with other Minitek Power series headers only if official documentation confirms identical pinout and mechanical dimensions.
