Product Detailed Parameters
- Description：CONN PWR4.2 RA HEADER
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

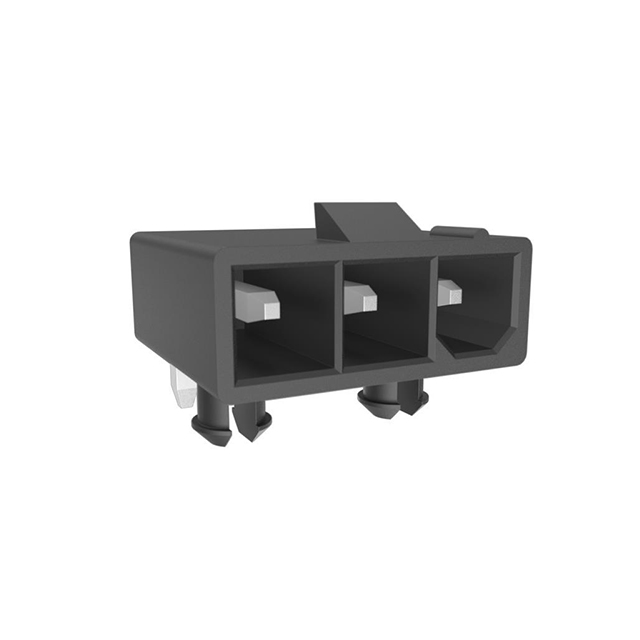

The Amphenol ICC (FCI) part number 10136646-03123LF is a Power to the Board header connector belonging to the Minitek Pwr 4.2 series. It features a right-angle surface mount installation style with a 4.20 mm pitch and three positions in a single row. The male pin contacts are constructed from copper alloy and finished with gold plating to ensure reliable conductivity. The housing is made of black thermoplastic material, providing structural integrity for high-current applications.
Feature Summary
- Right-angle surface mount design facilitates compact board layout integration
- Gold-plated male pin contacts ensure durable electrical connectivity
- Thermoplastic housing provides mechanical stability and insulation
Applications
- Power distribution in data communication systems
- Telecommunications equipment power interfaces
- Server and storage device internal power connections
Procurement Notes
Verify the specific suffix and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the right-angle orientation and 4.20 mm pitch match the target PCB footprint requirements. Ensure the supplier source is an authorized channel to guarantee component authenticity and traceability.
Selection Notes
Select this component when a high-current power interface requires a right-angle surface mount configuration. The 4.20 mm pitch accommodates substantial conductors compared to standard signal headers. Verify that the circuit voltage and current ratings align with the connector's specifications for safe operation within the intended application environment.
Part Context
This component is part of the Minitek Pwr 4.2 series by Amphenol ICC (FCI), designed for robust power delivery. The series is characterized by its ability to handle significant currents while maintaining a low profile. It serves as a critical interconnect solution in modern electronic assemblies requiring reliable power transmission.
Replacement Considerations
Direct substitutes must match the 4.20 mm pitch, 3-position count, right-angle SMT form factor, and male pin contact type. Verify housing material compatibility and terminal plating specifications to ensure equivalent performance characteristics.
