Product Detailed Parameters
- Description：CONN PWR4.2 RA HEADER
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

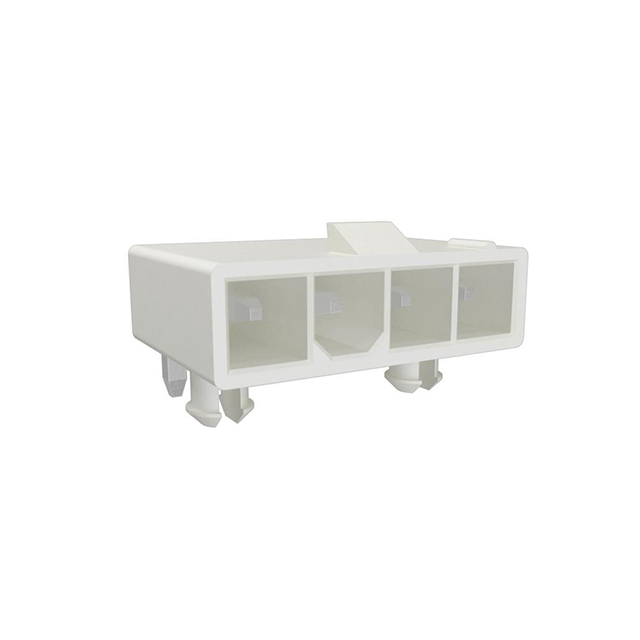

The Amphenol ICC (FCI) part number 10136646-04114LF is a Minitek PWR4.2 series connector header designed for through-hole termination. It features a right-angle configuration with four positions and a contact spacing of 0.165 inches (4.20mm). The component utilizes male pins to establish secure electrical connections within circuit assemblies.
Feature Summary
- Right-angle design facilitates efficient board layout optimization
- Through-hole termination ensures robust mechanical stability
- Minitek PWR4.2 series provides standardized pin spacing
Applications
- General electronic circuit interconnections
- Industrial equipment power distribution
- Consumer electronics assembly
Procurement Notes
Verify the complete part number including the suffix to ensure correct packaging and termination specifications. Confirm that the right-angle orientation and four-position count align with the target PCB footprint requirements before finalizing procurement orders.
Selection Notes
Select this component when a right-angle male header is required for through-hole mounting. The 4.20mm pitch distinguishes it from standard 2.54mm or 2.00mm systems. Ensure the application environment does not exceed the thermal limits associated with standard tin-plated contacts.
Part Context
This component belongs to the Minitek PWR4.2 family, which offers high-current capabilities relative to its size. The series is engineered for reliable performance in demanding environments, providing a balance between current carrying capacity and compact form factor for various industrial and commercial applications.
Replacement Considerations
Compatible substitutes must match the 4.20mm pitch, right-angle orientation, and through-hole termination method. Verify that alternative headers maintain equivalent current ratings and physical dimensions to ensure proper fit within the existing assembly constraints.
