10136646-05124LF

Overview

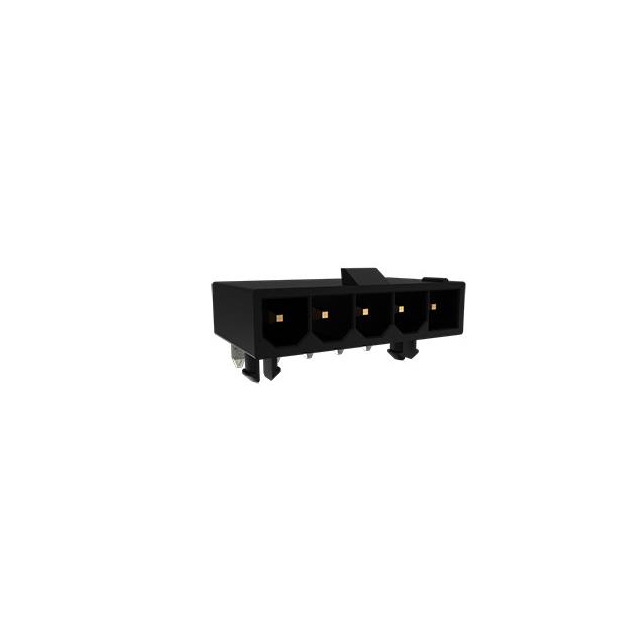

The Amphenol ICC (FCI) part number 10136646-05124LF is a Power4.2 right-angle header connector designed for board-to-board applications. It features a 5-position configuration with a 4.2mm pitch, suitable for power distribution in compact electronic systems. The component utilizes gold-plated contacts to ensure reliable conductivity and corrosion resistance over repeated mating cycles. Constructed with a thermoplastic housing, it offers mechanical stability and electrical insulation. This through-hole device is engineered for high-current performance within the Power4.2 series, providing a robust interconnection solution for modern hardware designs requiring secure power delivery.

Feature Summary

• Right-angle design facilitates compact board stacking and space-constrained layouts
• Gold-plated contacts provide durable conductivity and oxidation resistance
• Thermoplastic housing ensures structural integrity and electrical insulation
• Through-hole termination method secures stable mechanical mounting

Applications

• Power distribution in server motherboards
• High-density storage array interconnects
• Communication network equipment power modules
• Industrial control system board connections

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating thickness and material specifications. Ensure compatibility with mating receptacles from the same Power4.2 family. Confirm that the right-angle orientation matches the PCB layout requirements. Check for any recent product change notices regarding material substitutions or manufacturing location changes before finalizing procurement orders.

Selection Notes

Select this component when a right-angle power connection is required for high-current applications. The 4.2mm pitch allows for significant current carrying capacity compared to smaller pitches. Consider the through-hole mounting style for superior mechanical strength in vibration-prone environments. Evaluate the thermal management capabilities of the surrounding PCB area, as power headers generate heat during operation. Ensure the mating connector supports the required voltage and current ratings specified in the application design.

Part Context

This component belongs to the Power4.2 series by Amphenol ICC (FCI), a line specialized in high-power board-to-board interconnects. The series is widely used in data centers and telecommunications infrastructure where reliability under heavy load is critical. The right-angle form factor distinguishes it from straight headers, offering flexibility in enclosure design. As an FCI product, it adheres to strict quality standards for signal integrity and power delivery in demanding industrial and commercial electronics.

Replacement Considerations

Direct substitutes must match the 5-position count, 4.2mm pitch, and right-angle orientation. Verify that alternative components support the same current rating and utilize compatible termination methods. Cross-reference the housing dimensions and pin spacing to ensure physical fit within the existing assembly. Consult the manufacturer's cross-reference guide for officially approved equivalent part numbers.
