10136654-0411LF

Overview

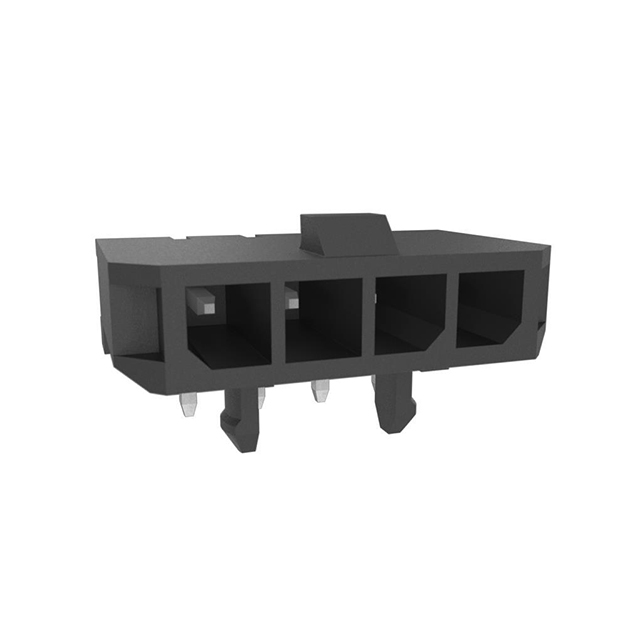

The Amphenol ICC (FCI) part number 10136654-0411LF is a Minitek Pwr Hybrid 3.0 connector header designed for power and signal applications. It features a 4-position configuration with male pin contacts, utilizing a 3.00mm pitch. The component supports through-hole mounting in a right-angle orientation. Contact materials are copper alloy with gold plating to ensure reliable conductivity. The housing is constructed from black liquid crystal polymer (LCP), providing high thermal stability and mechanical strength suitable for demanding industrial environments.

Feature Summary

• Hybrid design integrating power and signal transmission within a single compact header
• Right-angle through-hole termination facilitates efficient PCB layout and space optimization
• Gold-plated contacts ensure low contact resistance and corrosion resistance for long-term reliability
• Liquid crystal polymer insulation offers high heat resistance and dimensional stability

Applications

• Industrial automation control systems
• Power distribution units in server infrastructure
• Embedded instrumentation interfaces
• Medical equipment internal connections

Procurement Notes

Verify the specific suffix and packaging configuration against the manufacturer's latest datasheet before ordering. Confirm that the required current rating aligns with the application's electrical load requirements. Ensure the PCB footprint matches the specified 3.00mm pitch dimensions to guarantee proper mechanical fit and solder joint integrity during assembly.

Selection Notes

Select this component when a right-angle, through-hole solution is required for mixed signal and power routing. The 3.00mm pitch allows for higher current capacity compared to finer pitches. Consider the LCP material properties if the assembly process involves high reflow temperatures or harsh operating conditions requiring robust thermal performance.

Part Context

This part belongs to the Minitek Pwr Hybrid 3.0 series by Amphenol ICC (FCI). The series is engineered for applications needing reliable interconnects in compact spaces. It combines the durability of FCI connectors with hybrid functionality, serving as a standard interface in various electronic assemblies where board-to-board or cable-to-board connections are necessary.

Replacement Considerations

Direct substitutes must match the 4-position count, 3.00mm pitch, right-angle orientation, and through-hole termination. Verify compatibility with existing PCB footprints and mating hardware. Cross-reference with other Minitek series variants only if they share identical mechanical and electrical specifications.
