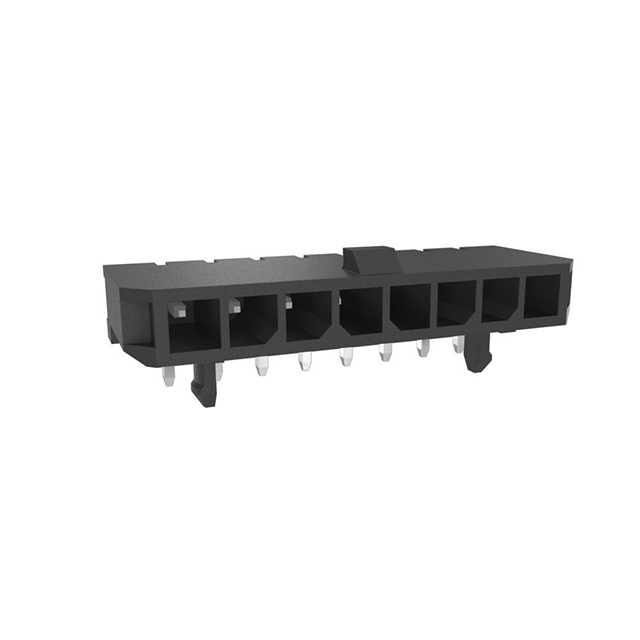

10136654-0811LF

$0.32

Description：CONN PWR3.0 RA HEADER
Series：Minitek® Pwr 3.0
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:b46977a6611e Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN PWR3.0 RA HEADER
Series：Minitek® Pwr 3.0
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.118" (3.00mm)
Number of Positions：8
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：8
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.126" (3.20mm)
Overall Contact Length：-
Insulation Height：0.172" (4.37mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：5A per Contact
Voltage Rating：-

Download product information

10136654-0811LF

Overview

The Amphenol ICC (FCI) part number 10136654-0811LF is a Minitek Power 3.0 series header connector designed for power-to-board applications. It features an 8-position configuration with a 3 mm pitch and utilizes gold-plated contacts to ensure reliable conductivity. The component is constructed with a black liquid crystal polymer (LCP) housing and copper alloy terminals, rated for 600 VAC and 8.5 A current. Designed for through-hole mounting in a straight orientation, it operates within a temperature range of -40°C to +105°C and meets UL94 V-0 flammability standards.
