10136655-0211LF

Overview

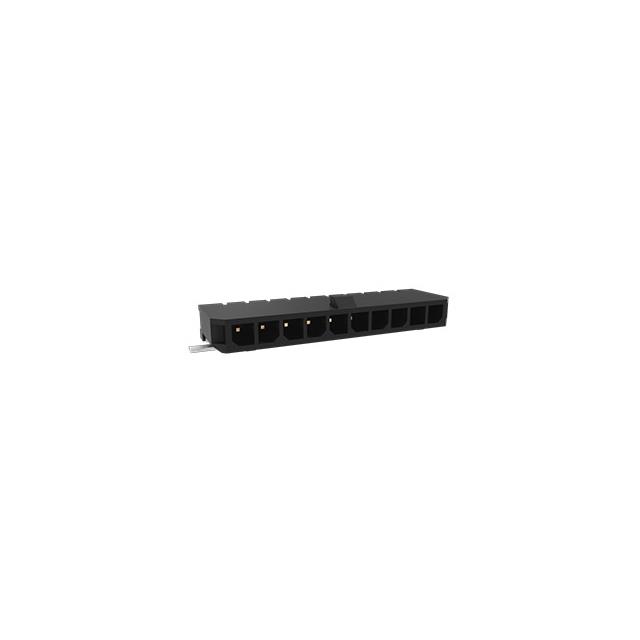

The Amphenol ICC (FCI) 10136655-0211LF is a Minitek Power 3.0 series power-to-board header designed for surface mount technology applications. This component features a right-angle orientation and utilizes a single row configuration with two positions. The connector employs pin-type male contacts made of copper, finished with a 15-microinch gold plating to ensure reliable conductivity. It operates within a temperature range of -40°C to +105°C and supports a current rating of 8.5 A at 600 VAC. The housing is constructed from black liquid crystal polymer (LCP), providing high thermal stability and insulation resistance of 1 GOhms. The unit uses a 3 mm pitch and is supplied in reel packaging.

Feature Summary

• Right-angle surface mount design for compact board integration
• High current capacity suitable for power distribution
• Gold-plated contacts for corrosion resistance
• LCP housing for thermal endurance

Applications

• Power supply modules
• Industrial control systems
• Telecommunications equipment

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm contact plating thickness and material specifications. Ensure that the selected variant matches the required mechanical dimensions and electrical ratings for the target application. Cross-reference the datasheet for any recent product change notices or lifecycle status updates before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, right-angle power connection is required for surface-mounted assemblies. The 3 mm pitch allows for wider trace spacing compared to finer pitches, which may simplify PCB layout for higher current paths. Confirm that the 8.5 A current rating aligns with the system's power requirements and that the operating temperature range covers the environmental conditions of the end-use device.

Part Context

This part belongs to the Minitek Power 3.0 family, a line of connectors engineered for robust power delivery in space-constrained environments. The series is characterized by its ability to handle significant currents while maintaining a small footprint. Amphenol FCI designs these components to meet rigorous industry standards for signal integrity and durability in demanding electronic applications.

Replacement Considerations

Consult the manufacturer's cross-reference guide for verified substitute part numbers. Do not assume interchangeability based on similar pitch or position counts alone; verify mating interface compatibility and electrical ratings.
