10136656-0412LF

Overview

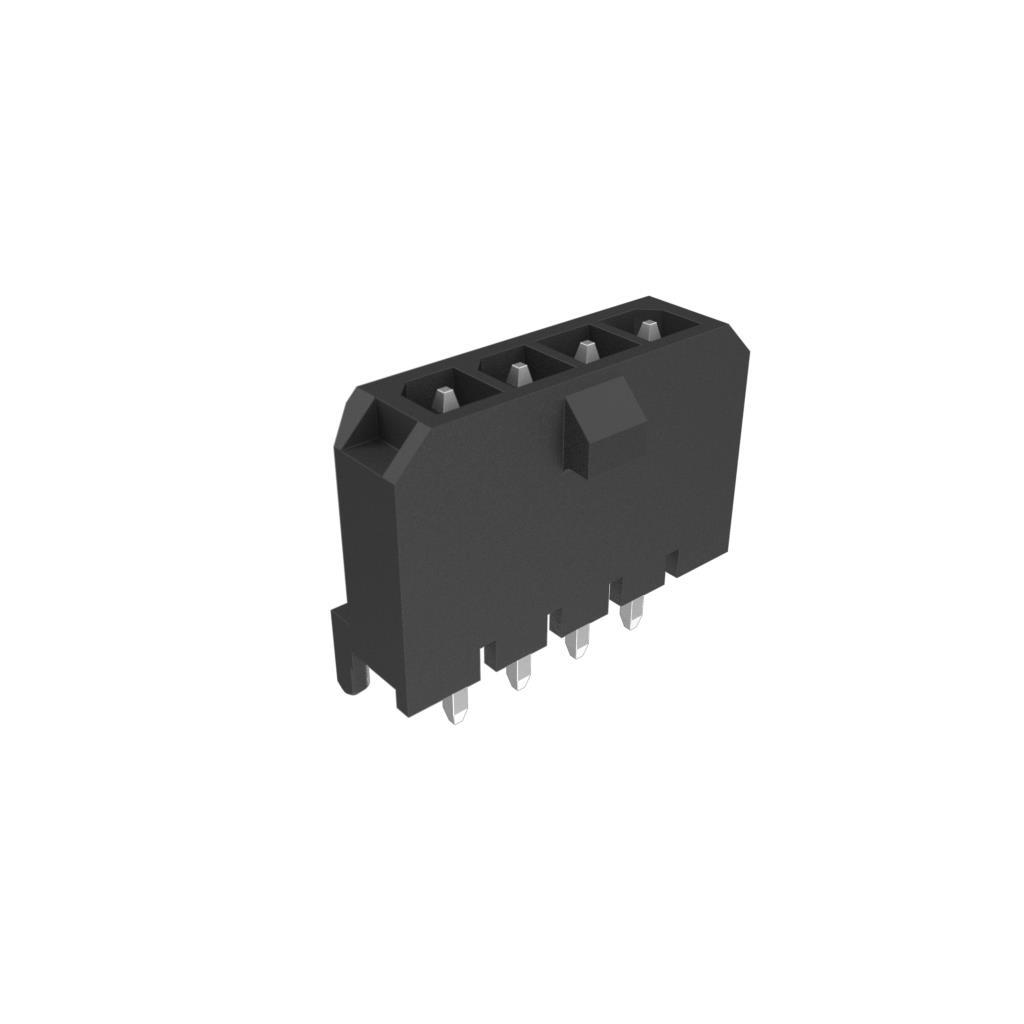

The Amphenol ICC (FCI) part number 10136656-0412LF is a Minitek Pwr 3.0 series header connector designed for power applications. It features a 4-position configuration with a 3.00mm pitch, utilizing through-hole solder termination. The component supports a current rating of up to 8.5A and operates within a temperature range of -40°C to +105°C. Constructed with copper contacts and gold plating, it ensures reliable electrical performance in compact power distribution systems.

Feature Summary

• Provides flexible power solutions with high current capacity
• Features vertical through-hole mounting for board integration
• Utilizes gold-plated copper contacts for signal integrity

Applications

• Compact power distribution systems
• Embedded electronics requiring reliable connections
• Industrial control boards

Procurement Notes

Verify the specific ordering suffix to ensure correct contact plating and housing material specifications. Confirm that the selected variant matches the required current rating and thermal operating limits for the target application environment before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, high-current solution is required for vertical board-to-board or cable-to-board interfaces. Ensure the PCB footprint accommodates the 3.00mm pitch and that the assembly process supports standard through-hole soldering techniques for optimal mechanical stability.

Part Context

This connector belongs to the Minitek Pwr 3.0 family, engineered for dense power applications. The series offers a balance of compact size and robust electrical characteristics, making it suitable for modern electronic designs where space constraints and reliability are critical factors in system architecture.

Replacement Considerations

No public confirmed substitute part numbers are available.
