10136656-0621LF

Overview

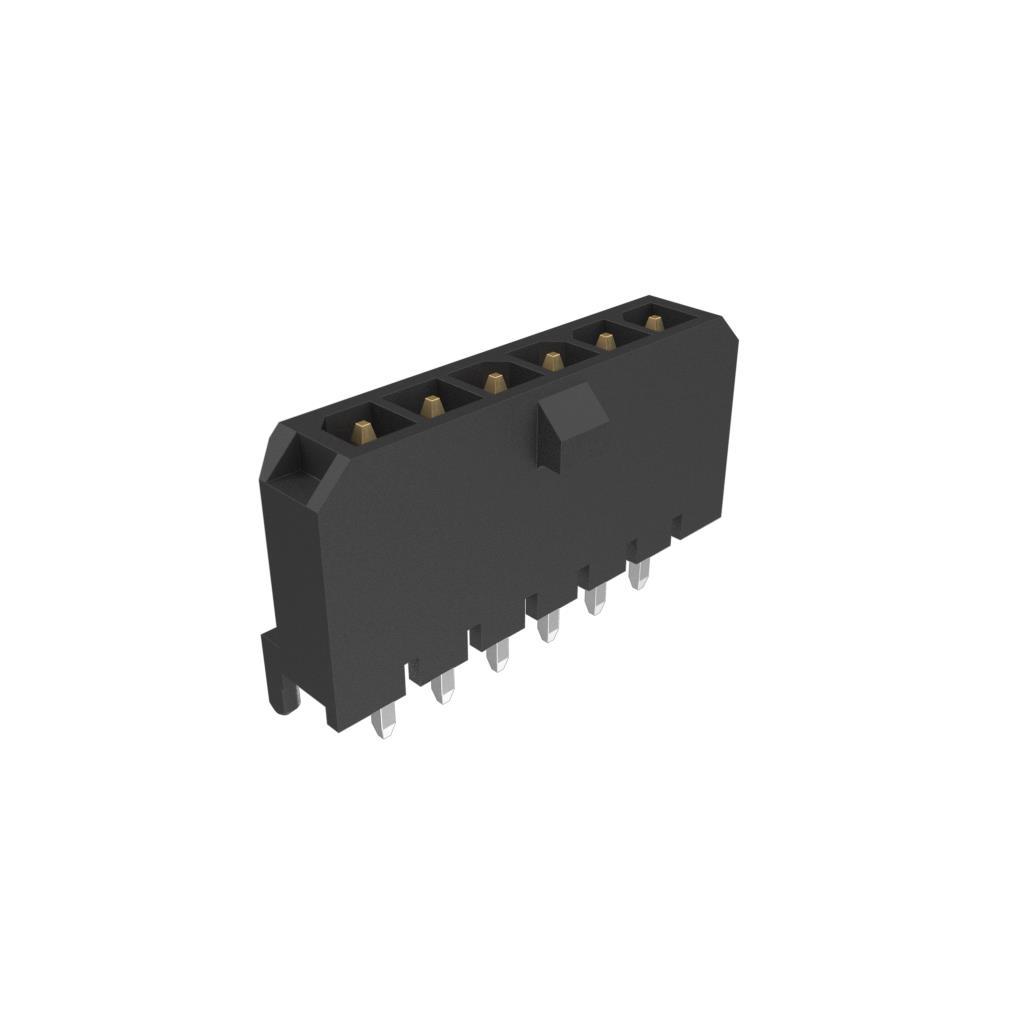

The Amphenol ICC (FCI) 10136656-0621LF is a Minitek Power3.0 series header connector designed for power-to-board applications. It features a vertical through-hole mounting style with six positions and a 3.00mm pitch. The component utilizes gold-plated copper contacts within a black LCP housing, rated for 8.5A current and 600VAC voltage. Operating temperatures range from -40°C to +105°C, ensuring reliable performance in demanding industrial environments.

Feature Summary

• Vertical through-hole termination for secure PCB integration
• Gold-plated contacts ensure high conductivity and corrosion resistance
• LCP housing provides thermal stability and mechanical strength

Applications

• Industrial power distribution systems
• Factory automation equipment
• Heavy machinery control boards

Procurement Notes

Verify the specific suffix code against official Amphenol documentation to confirm pin count and plating specifications. Ensure the selected variant matches the required vertical orientation and pitch dimensions for your circuit board layout. Cross-reference the manufacturer part number with authorized distributors to confirm current availability and lead times.

Selection Notes

Select this component when a robust, high-current vertical interconnect is required for power delivery. The 3.00mm pitch accommodates higher current loads compared to standard signal headers. Verify that the operating temperature range of -40°C to +105°C aligns with the environmental conditions of the target application.

Part Context

This connector belongs to the Minitek Power3.0 family, engineered for durable power connections in industrial settings. The series emphasizes high current carrying capacity and reliable contact retention. It serves as a critical interface between power sources and circuit boards in heavy-duty electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available.
