Product Detailed Parameters
- Description：CONN PWR3.0 VT HEADER
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：8
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.125" (3.18mm)
- Overall Contact Length：-
- Insulation Height：0.390" (9.91mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Guide
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：600V
Download product information
Overview

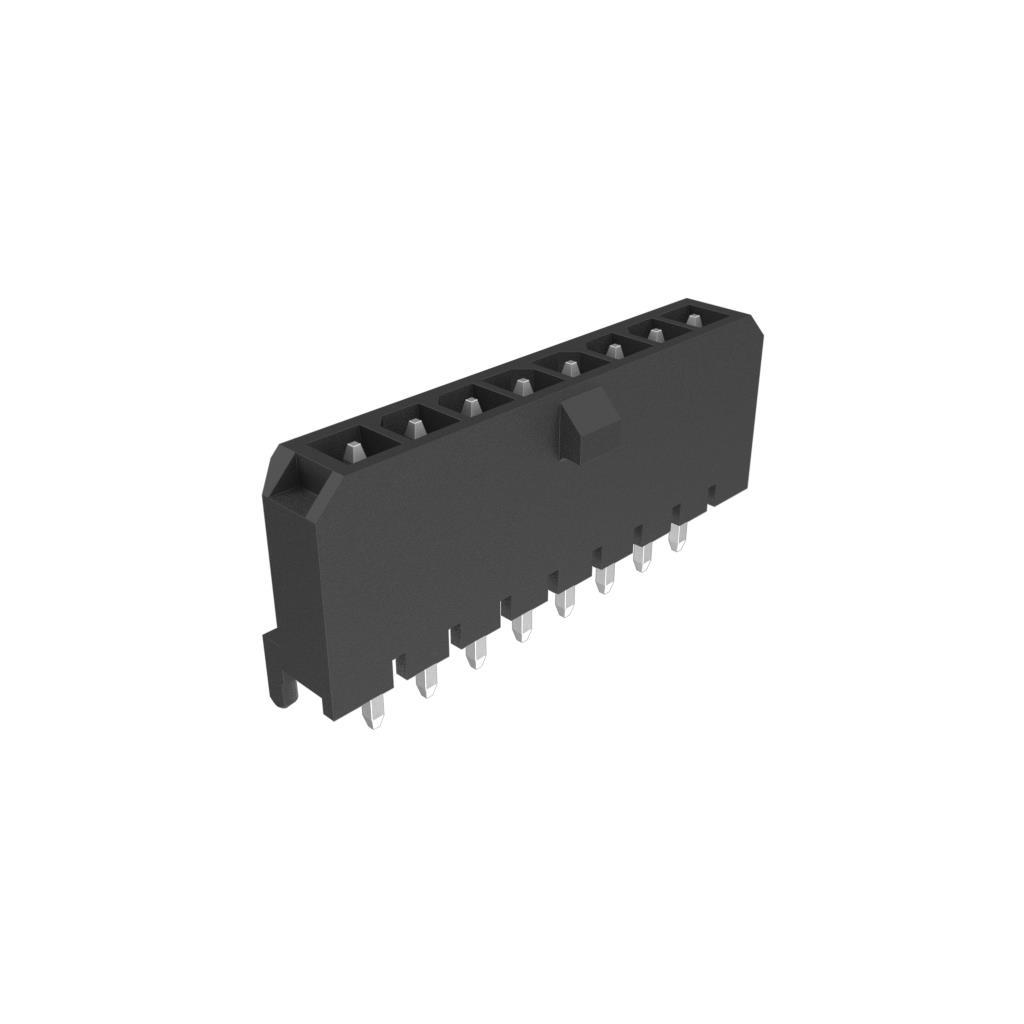

The 10136656-0812LF is a Minitek Power3.0 vertical through-hole header manufactured by Amphenol ICC (FCI). It features a 2-position configuration with a 3mm pitch, designed for power-to-board applications. The connector utilizes copper contacts with 15-microinch gold plating and an LCP housing rated for operation between -40°C and +105°C. It supports 8.5A current and 600VAC voltage ratings, providing reliable electrical performance in compact board-level power distribution systems.
Feature Summary
- Vertical through-hole mounting style for direct board integration
- High current capacity of 8.5A per contact position
- Gold-plated copper contacts for enhanced conductivity and corrosion resistance
- LCP housing material ensuring thermal stability up to 105°C
Applications
- Power distribution modules in industrial equipment
- Server and storage system power interfaces
- Telecommunications infrastructure power boards
- Compact power supply unit interconnects
Procurement Notes
Verify the specific pin count and orientation against design requirements before ordering. Confirm that the vertical through-hole form factor aligns with PCB assembly capabilities. Check RoHS compliance status if environmental regulations apply to the final product deployment. Ensure mating connectors match the 3mm pitch specification.
Selection Notes
Select this component when high-current power delivery is required in a space-constrained vertical layout. The 3mm pitch offers robust spacing for power signals compared to signal-grade connectors. Consider the 600VAC rating for isolation requirements. Verify that the LCP housing temperature range meets the operational environment limits of the target application.
Part Context
This part belongs to the Minitek Power3.0 series, a line of high-current connectors designed for board-level power applications. The series emphasizes reliability and compactness for modern electronics. Amphenol ICC (FCI) integrates this series into broader power management solutions for datacom and industrial markets.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer catalogs for cross-reference options if this specific variant is unavailable.
