Product Detailed Parameters

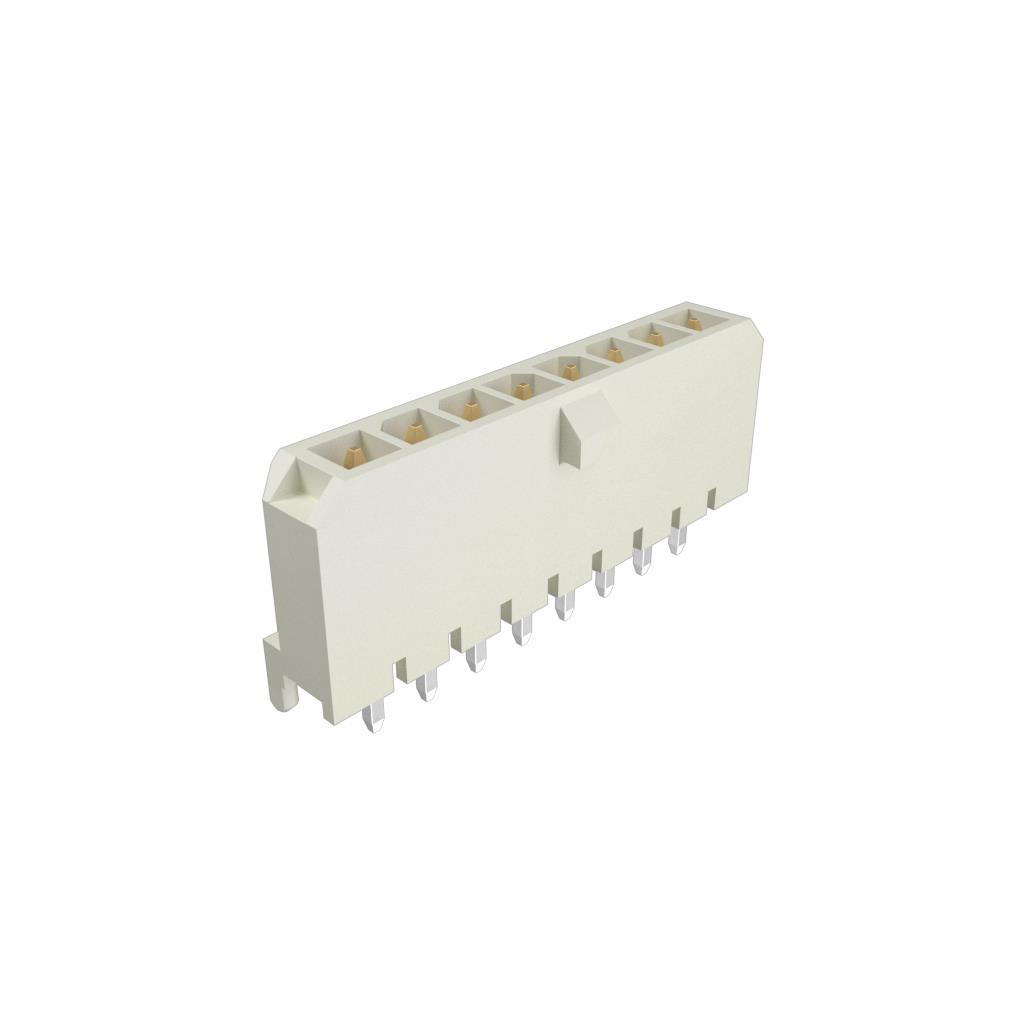

- Description：10136656-0842NLF-MTK 3.0 08P SR
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：8
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.125" (3.18mm)
- Overall Contact Length：-
- Insulation Height：0.583" (14.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Guide
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The 10136656-0842NLF is a Minitek Power3.0 SR VTH HDR connector manufactured by Amphenol ICC (FCI). It features an 8-position header with a 3.0mm pitch, designed for surface mount vertical termination. The contacts utilize a gold plating finish with a thickness of 30 microns to ensure reliable conductivity and corrosion resistance in power applications.
Feature Summary
- Minitek Power3.0 series optimized for high-current power delivery
- Surface mount vertical termination for compact board integration
- Gold contact plating ensures stable electrical performance
Applications
- Power supply modules
- Industrial control systems
- Consumer electronics power interfaces
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin count, pitch, and termination style match project requirements. Ensure the component meets RoHS compliance standards if required by the assembly process. Cross-reference the base product number 10136656 for family compatibility.
Selection Notes
Select this component when a low-profile, surface-mount power header is required. The 3.0mm pitch allows for higher current capacity compared to standard signal headers. Consider the vertical orientation for space-constrained designs where board-to-board or cable connections are needed without protruding height limitations.
Part Context
This part belongs to the Minitek Power3.0 series, which focuses on power management solutions. It complements other FCI connectors by providing robust power distribution capabilities. The series supports various configurations to meet diverse electronic market demands for efficient energy transfer.
Replacement Considerations
Check for direct substitutes within the Minitek Power3.0 family that may offer different pin counts or mounting styles. Verify mechanical footprint compatibility before replacing with alternative manufacturers' equivalents to ensure proper soldering and alignment.
