10137482-001LF

Edgeboard Connectors Overview

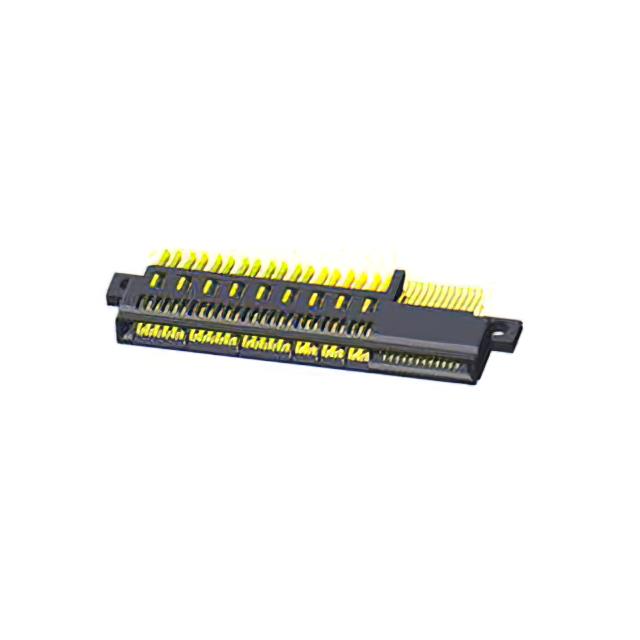

The Amphenol ICC (FCI) 10137482-001LF is a high-density edge card connector belonging to the eHPCE series. It features a dual female configuration with 30 positions, designed for board-to-board or cable-to-board interfaces. The contacts are gold-plated to ensure reliable signal transmission in compact, power-dense applications. This component utilizes a thermoplastic housing and operates within standard industrial temperature ranges.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure mating
• Gold-plated contacts for enhanced conductivity
• Thermoplastic housing material for structural integrity

Edgeboard Connectors Applications

• Compact electronic device interconnects
• Power-dense application modules
• High-density pin-and-socket systems

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version before ordering, as manufacturer specifications may be updated. Confirm that the gold plating and thermoplastic housing meet your environmental requirements. Ensure compatibility with mating edge cards or cables regarding pitch and form factor. Check for any recent product change notices affecting material composition or performance ratings.

Edgeboard Connectors Selection Notes

Select this part when a high-density, dual-sided edge connector is required for space-constrained designs. The eHPCE series offers a compact footprint suitable for modern electronics. Consider the gold contact finish for corrosion resistance and low contact resistance needs. Evaluate the 30-position count against your circuitry requirements to ensure optimal board utilization without excessive size.

Edgeboard Connectors Part Context

This component is part of the eHPCE family from Amphenol ICC (FCI), which specializes in high-performance interconnect solutions. The series is engineered for applications demanding reliability in small form factors. It complements other connectors in the portfolio by providing robust electrical connections in dense layouts.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with existing design files if considering alternative suppliers.
