Product Detailed Parameters
- Description：CONN PWR4.2 HCC RA
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：-
- Voltage Rating：600V
Download product information
Overview

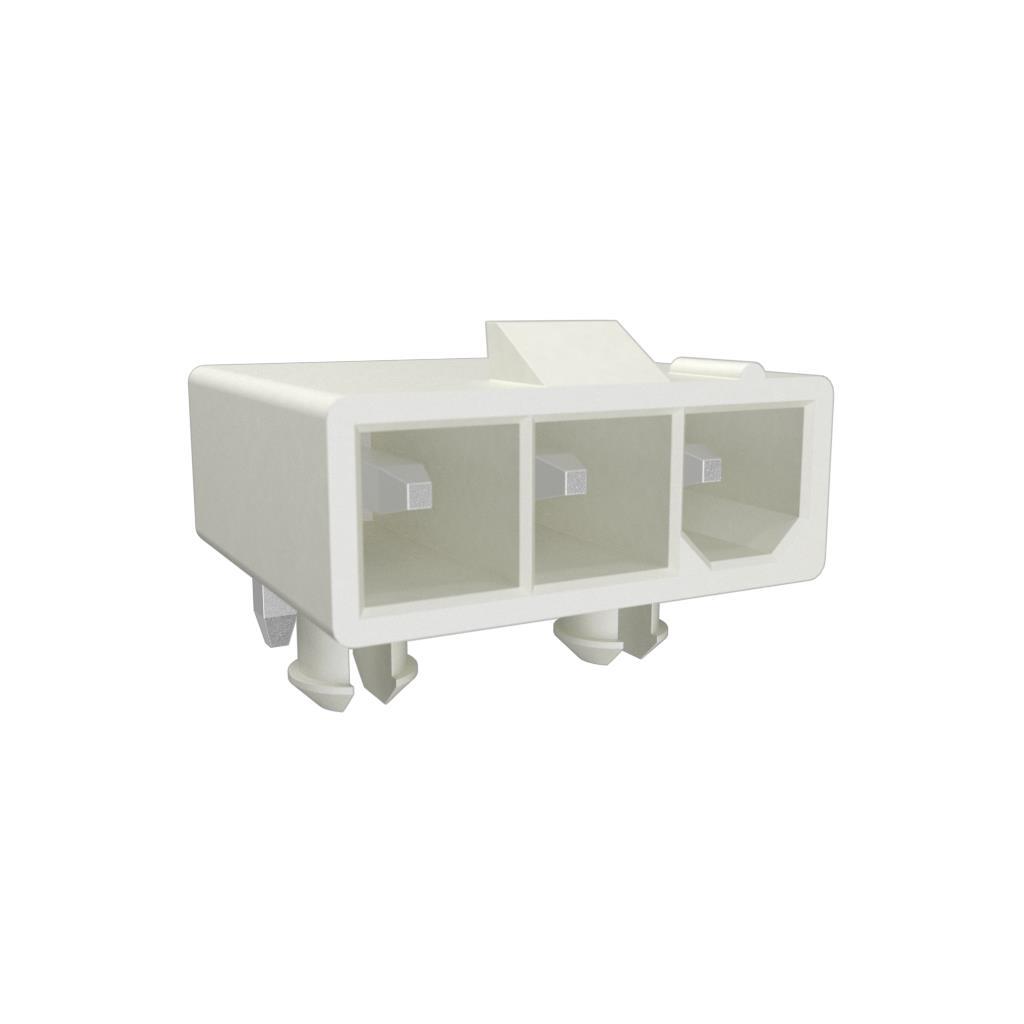

The Amphenol ICC (FCI) part number 10137784-03112LF is a board connector featuring three male contacts. It utilizes a right-angle surface mount installation with solder terminals and includes locking features for secure attachment. The insulator is constructed from polyamide, appearing in a natural color. Contact finishes include gold plating on the mating interface and tin over nickel on the termination side. This component is designed for reliable electrical connections within electronic assemblies.
Feature Summary
- Right-angle surface mount design for space-efficient PCB integration
- Male pin configuration with locking mechanism for stability
- Dual material contact finish: gold for mating and tin/nickel for termination
Applications
- Wire-to-board interconnections
- Wire-to-wire applications
- General electronic circuit assembly
Procurement Notes
Verify the specific suffix and RoHS compliance status against the manufacturer's current documentation before procurement. Confirm that the natural insulator color and polyamide material meet your environmental requirements. Ensure the right-angle orientation aligns with your PCB layout constraints to avoid mechanical interference during assembly.
Selection Notes
Select this component when a low-profile, right-angle header is required for three-circuit connections. The mixed contact finish supports both signal integrity and solderability needs. Consider the locking feature if vibration resistance is critical. Verify that the surface mount footprint matches your board design guidelines.
Part Context
This connector belongs to the Minitek Power series by Amphenol ICC (FCI). The series offers various configurations for power and signal applications. The 10137784-03112LF specifically addresses compact mounting needs with its right-angle profile and robust locking design.
Replacement Considerations
Check for direct substitutes within the same Minitek Power family. Ensure any replacement maintains the three-position count, right-angle orientation, and compatible contact finishes. Verify mechanical dimensions and locking mechanisms match the original design.
