Product Detailed Parameters
- Description：CONN PWR4.2 HCC RA
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：-
- Voltage Rating：600V
Download product information
Overview

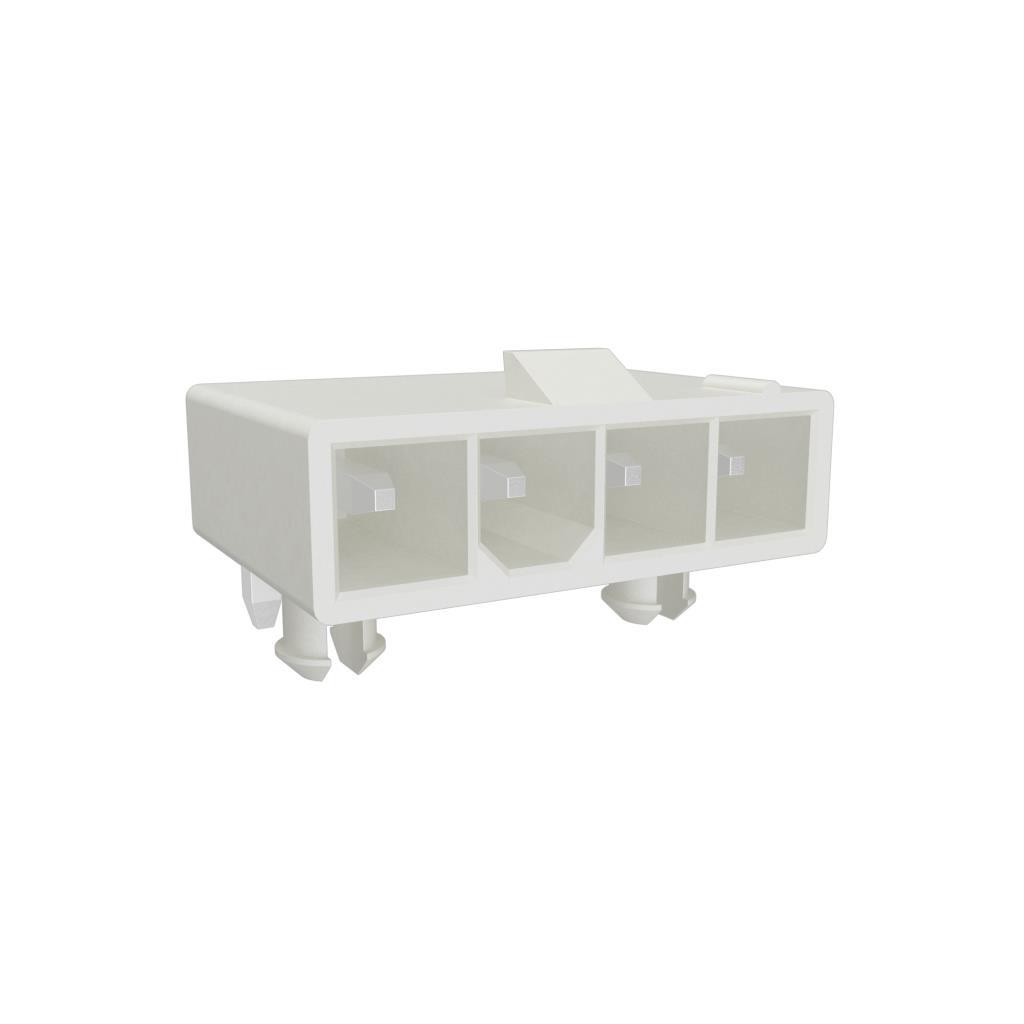

The Amphenol ICC (FCI) part number 10137784-04113LF is a Minitek Power 4.2 series power connector designed for board-to-board applications. It features a right-angle header configuration with four positions and a 4.2 mm pitch. The contacts are constructed from copper alloy with a 30-micron gold plating to ensure reliable conductivity. Rated for 12.5 A current, the component operates within a temperature range of -40°C to +105°C. It utilizes a single row arrangement and includes a natural-colored housing.
Feature Summary
- Right-angle surface mount design optimized for space-constrained PCB layouts
- Gold-plated contacts provide corrosion resistance and stable electrical performance
- High current carrying capacity suitable for power distribution tasks
Applications
- Server and storage equipment power distribution
- Industrial control system interconnects
- Telecommunications infrastructure power modules
Procurement Notes
Verify the specific ordering suffix against the manufacturer's latest datasheet to confirm contact plating thickness and housing material variations. Ensure compatibility with mating receptacles regarding pitch and pin count. Confirm RoHS compliance status and moisture sensitivity level requirements for your assembly process before finalizing procurement orders.
Selection Notes
Select this component when a high-current right-angle connection is required in compact designs. The 4.2 mm pitch allows for robust power handling compared to smaller signal connectors. Verify that the PCB footprint matches the specified dimensions and that the mounting style aligns with the assembly constraints.
Part Context
This connector belongs to the Minitek Power 4.2 family, engineered for demanding power delivery environments. The series emphasizes durability and thermal stability, making it suitable for critical infrastructure. Amphenol FCI designs these components to meet rigorous industrial standards for long-term reliability.
Replacement Considerations
Cross-reference with other Minitek Power 4.2 variants for mechanical fit. Verify that substitute parts maintain identical pitch, current rating, and contact configuration to ensure functional equivalence without redesigning the PCB layout.
