Product Detailed Parameters

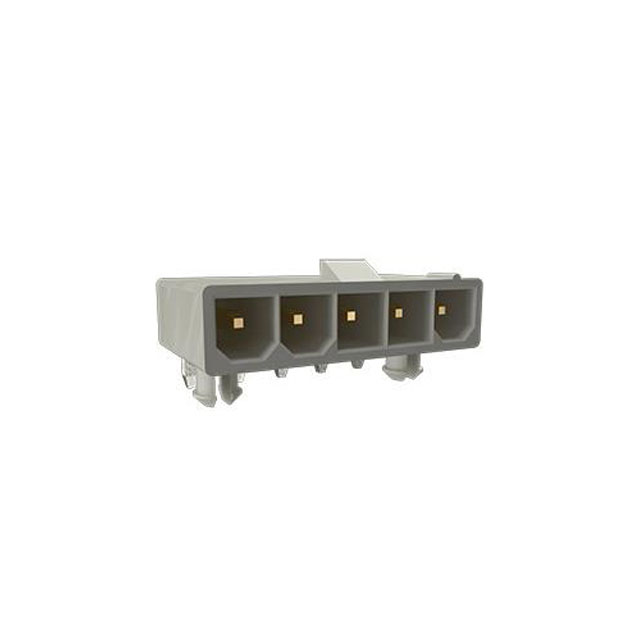

- Description：CONN PWR4.2 HCC RA
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：5
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：-
- Voltage Rating：600V
Download product information
Overview
The Amphenol ICC (FCI) part number 10137784-05114LF is a MinitekPwr 4.2 series power connector designed for board-to-board applications. It features a 4-position configuration with a 4.2 mm pitch and utilizes copper alloy contacts plated with tin. The component is engineered for right-angle surface mount installation, providing a secure electrical interface for power distribution within electronic assemblies.
Feature Summary
- MinitekPwr 4.2 series design optimized for high-current power delivery
- Right-angle surface mount termination for efficient PCB layout integration
- Board lock feature ensures stable mechanical retention during operation
Applications
- Industrial equipment power interfaces
- Factory automation systems
- IoT device power connections
Procurement Notes
Verify the specific contact plating finish against project requirements, as documentation indicates tin plating for this suffix. Confirm that the right-angle surface mount form factor aligns with the target PCB assembly constraints. Ensure compatibility with mating connectors in the MinitekPwr 4.2 family to guarantee proper electrical and mechanical engagement.
Selection Notes
Select this component when a low-profile, right-angle power connection is required for industrial or IoT applications. The 4.2 mm pitch supports higher current capacities compared to signal connectors. Verify that the board lock feature meets the mechanical stability needs of the assembly environment.
Part Context
This connector belongs to the MinitekPwr 4.2 product line from Amphenol ICC (FCI), formerly Framatome Connectors International. The brand specializes in robust interconnect solutions for demanding environments, including industrial automation and energy systems. This series focuses on reliable power transmission with compact form factors.
Replacement Considerations
No public substitute part numbers are documented. Evaluate compatible alternatives within the same MinitekPwr 4.2 series or consult manufacturer engineering support for direct replacements.
