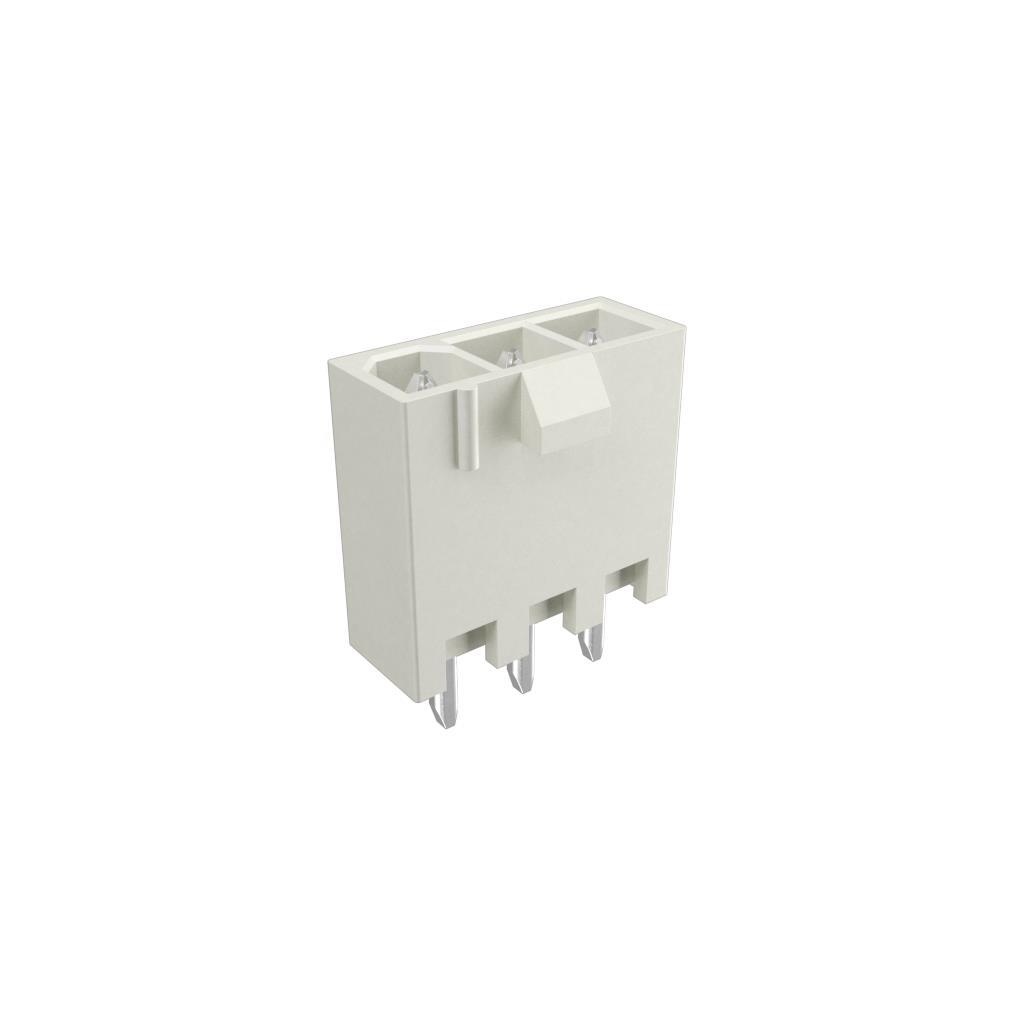

10137785-031112LF

$0.23

Description：CONN PWR4.2 HCC VT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:951a52002dd8 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN PWR4.2 HCC VT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：3
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder Cup
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Rectangular
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：Glow Wire Compliant
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：-
Voltage Rating：600V

Download product information

10137785-031112LF

Overview

The Amphenol ICC (FCI) part number 10137785-031112LF is a Minitek Power 4.2 series power-to-board header connector. It features a 3-position, single-row configuration with a 4.2mm pitch. The connector utilizes male pin contacts and is designed for vertical through-hole mounting with solder termination. Rated for 12.5A current and 600VAC voltage, it operates within a temperature range of -40°C to +105°C.

Feature Summary

Supports high-power delivery with 12.5A current rating per contact
Vertical through-hole installation for reliable board attachment
High voltage insulation capability rated at 600VAC
Compatible with standard surface-mount assembly processes

Applications

Power distribution in server hardware
Data storage system interconnects
Telecommunications equipment power interfaces
Industrial control board connections

Procurement Notes

Verify the specific contact plating finish against project requirements, as variations exist within this series. Confirm that the vertical orientation and through-hole termination method align with the target PCB layout. Ensure the 4.2mm pitch matches the mating receptacle specifications to guarantee proper electrical engagement and mechanical fit during assembly.

Selection Notes

Select this component when a robust, high-current power interface is required for board-level applications. The 4.2mm pitch provides ample spacing for high-voltage isolation compared to smaller signal connectors. Consider the thermal performance limits of +105°C and ensure the housing material compatibility with the intended operating environment and soldering temperatures.

Part Context

This connector belongs to the Minitek Power 4.2 family, engineered for demanding power-to-board scenarios. The series is characterized by its ability to handle significant current loads while maintaining structural integrity. It serves as a critical link in systems requiring stable power delivery between boards or from cables to circuitry in dense electronic assemblies.
