Product Detailed Parameters
- Description：CONN PWR4.2 HCC VT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder Cup
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Rectangular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock, Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：-
- Voltage Rating：600V
Download product information
Overview

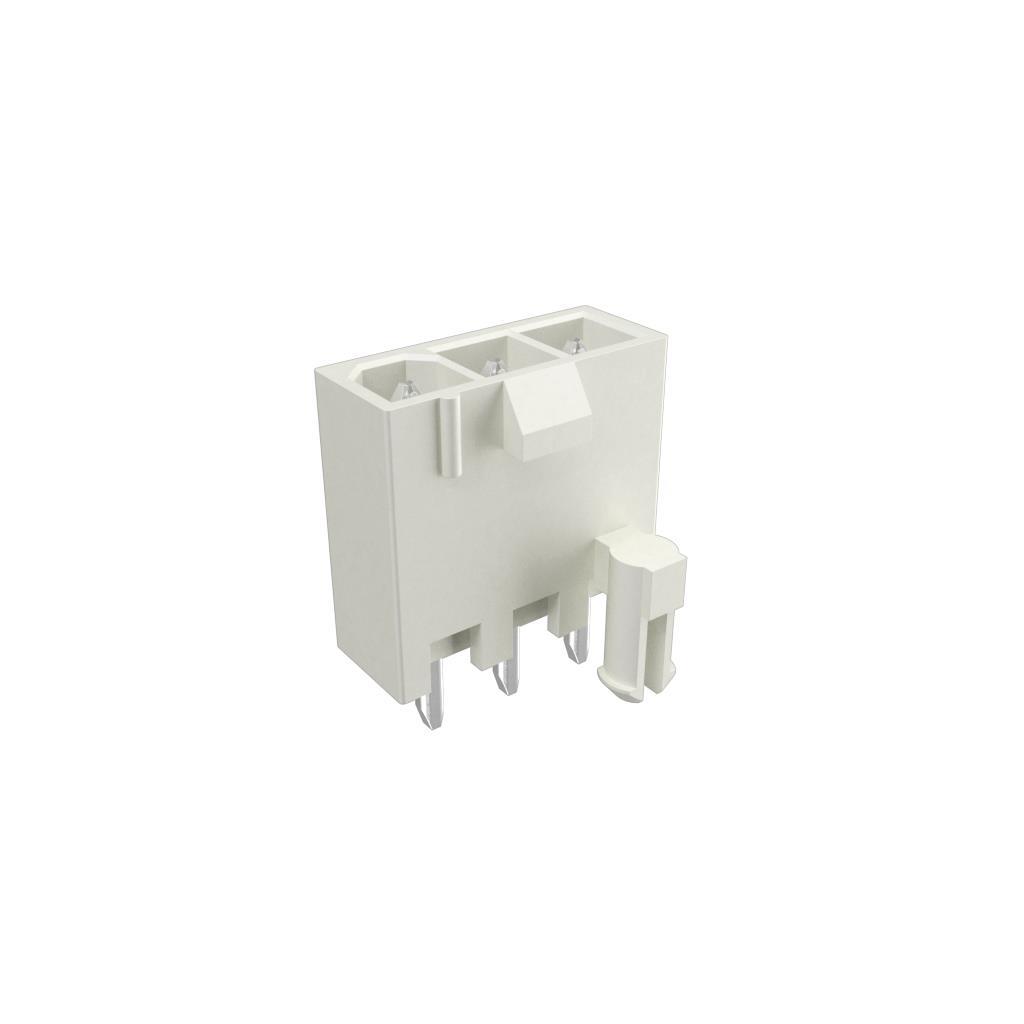

The Amphenol ICC (FCI) part number 10137785-031131LF is a Minitek Power4.2HCC vertical header designed for power-to-board applications. It features a 3-position configuration with a 4.2mm pitch and operates within a temperature range of -40°C to +105°C. The connector utilizes copper contacts with gold plating and has a black insulator rated UL94 V-0. It supports a current rating of 12.5A per contact and offers an insulation resistance of 1 GOhm.
Feature Summary
- Vertical board lock design ensures secure mechanical attachment
- Glow wire compliant construction for enhanced safety standards
- Gold-plated copper contacts provide reliable conductivity
Applications
- Power distribution in industrial equipment
- Data communication systems requiring robust power connections
- Server and storage device internal power interfaces
Procurement Notes
Verify the specific suffix and lead time requirements directly with the manufacturer or authorized distributors, as availability may vary. Confirm that the vertical orientation and glow wire compliance meet your specific assembly and regulatory needs before finalizing orders.
Selection Notes
Select this component when a vertical, high-current power connection is required with a 4.2mm spacing. Ensure the application environment stays within the specified temperature limits and that the board layout accommodates the vertical header profile and locking mechanism.
Part Context
This connector belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), focusing on power delivery solutions. The series is known for durability and suitability in demanding environments like data centers and industrial automation where reliable power transmission is critical.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing board layouts if considering alternative suppliers.
