Product Detailed Parameters
- Description：CONN PWR4.2 HCC VT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder Cup
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Rectangular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock, Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：600V
Download product information
Overview

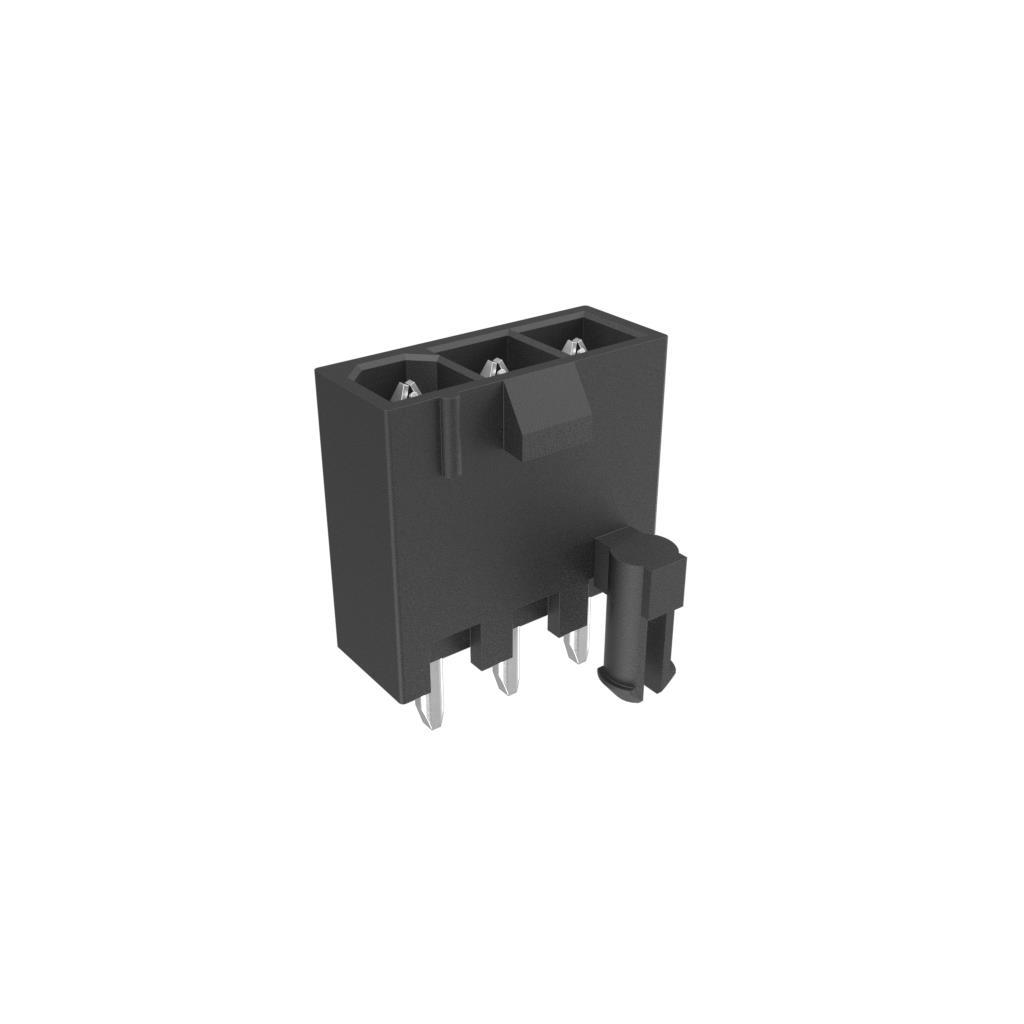

The Amphenol ICC (FCI) part number 10137785-031211LF is a Minitek Power 4.2 series power-to-board connector header. It features a 3-position configuration with a 4.2 mm pitch and vertical through-hole mounting style. The contacts are gold-plated copper, rated for 12.5 A current and 600 VAC voltage. The housing is black liquid crystal polymer (LCP), supporting an operating temperature range from -40°C to +105°C. This single-row component provides reliable electrical connections in high-power applications.
Feature Summary
- High-current capability of 12.5 A per position
- Gold-plated contacts for enhanced conductivity and corrosion resistance
- Vertical through-hole termination for secure PCB integration
- Thermally stable LCP housing material
Applications
- Power distribution modules
- Industrial equipment power interfaces
- Server and storage system power inputs
Procurement Notes
Verify the specific ordering suffix against the official datasheet to ensure correct contact plating and housing color specifications. Confirm that the 4.2 mm pitch and 3-position count align with the target board layout. Check for RoHS compliance status if required by project regulations, as older stock may differ. Ensure the vertical mounting orientation matches the assembly design.
Selection Notes
Select this component when a robust, high-current power interface is required for board-level connections. The 4.2 mm pitch accommodates higher amperage compared to standard signal connectors. Verify that the 600 VAC rating meets the system's electrical requirements. Consider the thermal performance of the LCP housing for environments exceeding standard temperatures.
Part Context
This connector belongs to the Minitek Power 4.2 family, designed for power-dense applications. Amphenol FCI produces this series to provide reliable power delivery in industrial and data communication sectors. The product line emphasizes durability and high current handling capabilities for critical infrastructure components.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Minitek Power 4.2 variants only if pin count and pitch match exactly.
