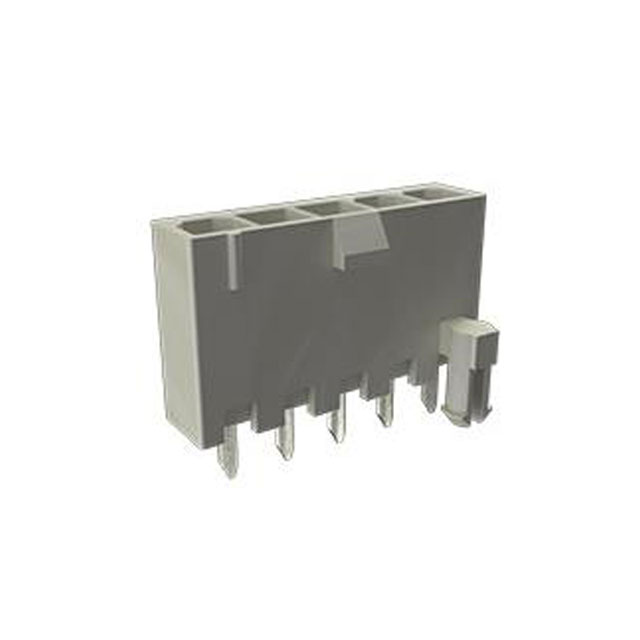

10137785-052242LF

Description：CONN PWR4.2 HCC VT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:0d20a5cf0b0c Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN PWR4.2 HCC VT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：5
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder Cup
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Rectangular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：600V

Download product information

10137785-052242LF

Overview

The Amphenol ICC (FCI) part number 10137785-052242LF is a Minitek Power 4.2 series power-to-board connector header. It features a vertical through-hole mounting style with a 4.2 mm pitch and 5 positions. The contacts are copper alloy with tin plating, rated for 12.5 A current and 600 VAC voltage. The housing is constructed from black liquid crystal polymer (LCP), offering an insulation resistance of 1 GOhms. Operating temperature ranges from -40°C to +105°C.

Feature Summary

High current capacity suitable for power distribution applications
Vertical through-hole termination for secure board attachment
Durable LCP housing material resistant to thermal stress

Applications

Power distribution systems in industrial equipment
Server and storage device internal power connections
Factory automation control panels

Procurement Notes

Verify the specific contact plating finish against project requirements, as this variant utilizes tin plating rather than gold. Confirm that the vertical orientation and 4.2 mm pitch align with the target PCB layout. Ensure the operating temperature range meets environmental specifications. Cross-reference the manufacturer's latest documentation for any design changes or obsolescence notices prior to finalizing procurement plans.

Selection Notes

Select this component when high current carrying capability is required alongside a robust mechanical connection. The vertical form factor simplifies assembly processes compared to right-angle alternatives. Consider the tin-plated contacts for cost-sensitive applications where corrosion protection is sufficient. Evaluate the LCP housing properties for environments requiring high thermal stability during soldering and operation.

Part Context

This connector belongs to the Minitek Power 4.2 family, designed for reliable power transmission in compact spaces. The series supports various pin counts and plating options to suit different electrical demands. As part of the Amphenol portfolio, it adheres to strict quality standards for industrial interconnect solutions. The product line emphasizes durability and ease of integration into complex electronic assemblies.
