10137924-0412LF

Overview

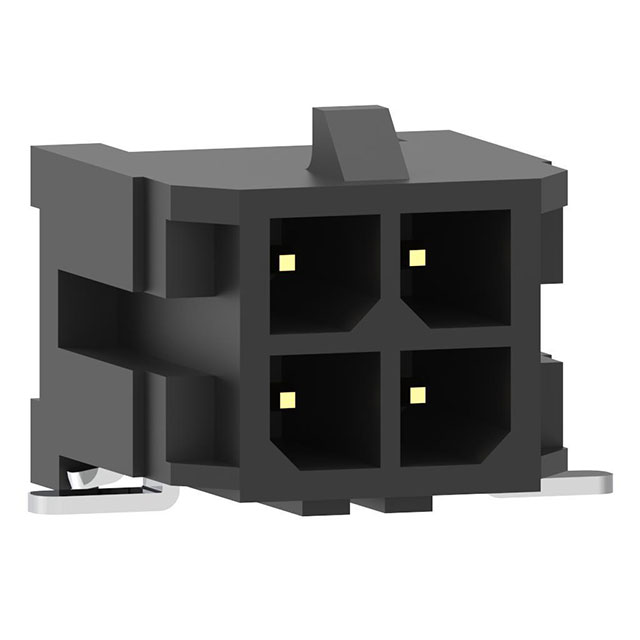

The Amphenol ICC (FCI) part number 10137924-0412LF is a Minitek Pwr 3.0 series header connector designed for surface mount technology applications. This component features a right-angle configuration with four positions arranged in a dual-row layout. The mating pitch is specified at 0.118 inches (3.00 mm), and the row spacing matches this dimension. The contacts are male pins constructed from copper alloy, finished with tin plating on both the mating interface and the tail. The housing is manufactured from black liquid crystal polymer (LCP) that is halogen-free and rated UL94 V-0 for flammability. It includes a four-wall shielded shroud and utilizes a locking pin rail mechanism for secure retention.

Feature Summary

• Right-angle surface mount design for compact board-to-cable or wire connections
• Four-wall shielded shroud provides electromagnetic interference protection
• Locking pin rail system ensures secure mechanical retention during operation
• Halogen-free LCP insulation material supports high thermal stability

Applications

• Power distribution modules requiring reliable board-to-cable interconnects
• Industrial control systems utilizing surface mount power headers
• Data communication equipment needing shielded power supply connections

Procurement Notes

Verify the specific ordering suffix to confirm contact plating and packaging format. The standard designation indicates tin-plated contacts and tape-and-reel packaging. Confirm compatibility with mating cable assemblies and ensure the right-angle orientation aligns with the target PCB layout constraints before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, shielded power header is required for surface mount assembly. The 3.00 mm pitch accommodates heavier gauge wires compared to smaller signal connectors. Ensure the application environment remains within the -40°C to +105°C operating range and that the 600V rating meets the circuit voltage requirements.

Part Context

This connector belongs to the Minitek Pwr 3.0 family, which focuses on power delivery solutions for dense electronic assemblies. The series offers various configurations including vertical and right-angle options with different row counts. It is engineered to provide robust electrical performance in space-constrained environments typical of modern server and industrial hardware designs.

Replacement Considerations

Direct substitutes must match the 3.00 mm pitch, dual-row header configuration, and right-angle SMT mounting style. Verify that alternative components maintain the same four-wall shielding and locking pin rail features to ensure equivalent mechanical and electrical performance in the existing design.
