10137924-0811LF

Overview

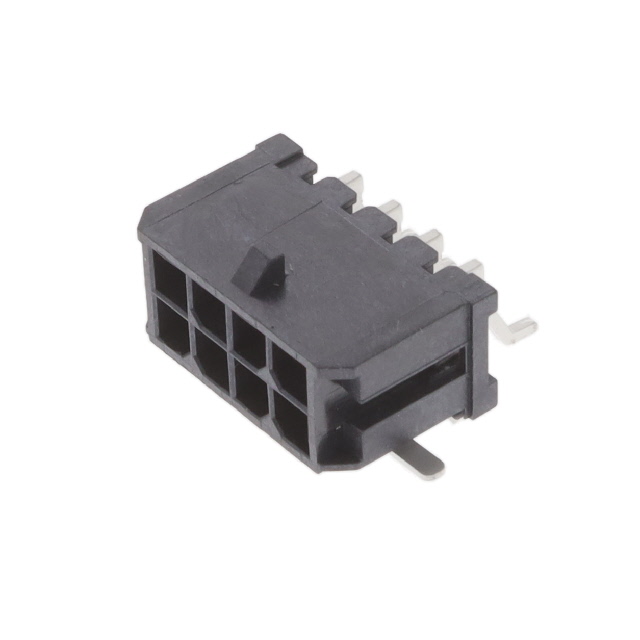

The Amphenol ICC (FCI) part number 10137924-0811LF is a Minitek Pwr 3.0 series header connector designed for surface mount technology applications. This component features a dual-row configuration with eight positions, providing a robust electrical interface for power-to-board connections. The connector utilizes a 3.00 mm pitch for both mating and row spacing, ensuring precise alignment during assembly. Constructed with copper alloy contacts finished in tin plating, it offers reliable conductivity within a black liquid crystal polymer housing rated UL94 V-0. Designed for right-angle installation, the unit supports wire-to-board wiring configurations.

Feature Summary

• Right-angle surface mount design for compact board integration
• Dual-row header configuration with eight male pin positions
• Tin-plated copper alloy contacts for conductive reliability
• UL94 V-0 rated liquid crystal polymer insulation material

Applications

• Power distribution in server infrastructure
• Wire-to-board connections in industrial equipment
• Data communication hardware assemblies
• Consumer electronic device power interfaces

Procurement Notes

Verify the specific suffix and RoHS compliance status directly against the manufacturer's current datasheet before finalizing procurement orders. Confirm that the tin-plated contact finish aligns with your soldering process requirements and environmental regulations. Ensure compatibility with the intended wire gauge and mating receptacle housings from the same Minitek Pwr 3.0 family to guarantee proper mechanical engagement and electrical performance.

Selection Notes

Select this component when a right-angle, surface-mount power header is required for high-density wiring applications. The 3.00 mm pitch allows for substantial current carrying capacity compared to finer pitches. Consider the dual-row layout for maximizing connection density on limited board space. Verify that the operating temperature range of -40°C to +105°C meets the thermal environment of the target system.

Part Context

This connector belongs to the Minitek Pwr 3.0 product line manufactured by Amphenol ICC (FCI), formerly Framatome Connectors International. The series is engineered for demanding power and signal applications in computing and telecommunications sectors. It represents a standard solution for reliable interconnects requiring surface mount convenience and durable construction for long-term operational stability.

Replacement Considerations

Compatible substitutes include other headers within the Minitek Pwr 3.0 series with matching 8-position counts and right-angle SMT footprints. Ensure any alternative maintains the 3.00 mm pitch specification and compatible housing locking mechanisms for seamless integration into existing designs.
