10137924-0841LF

Overview

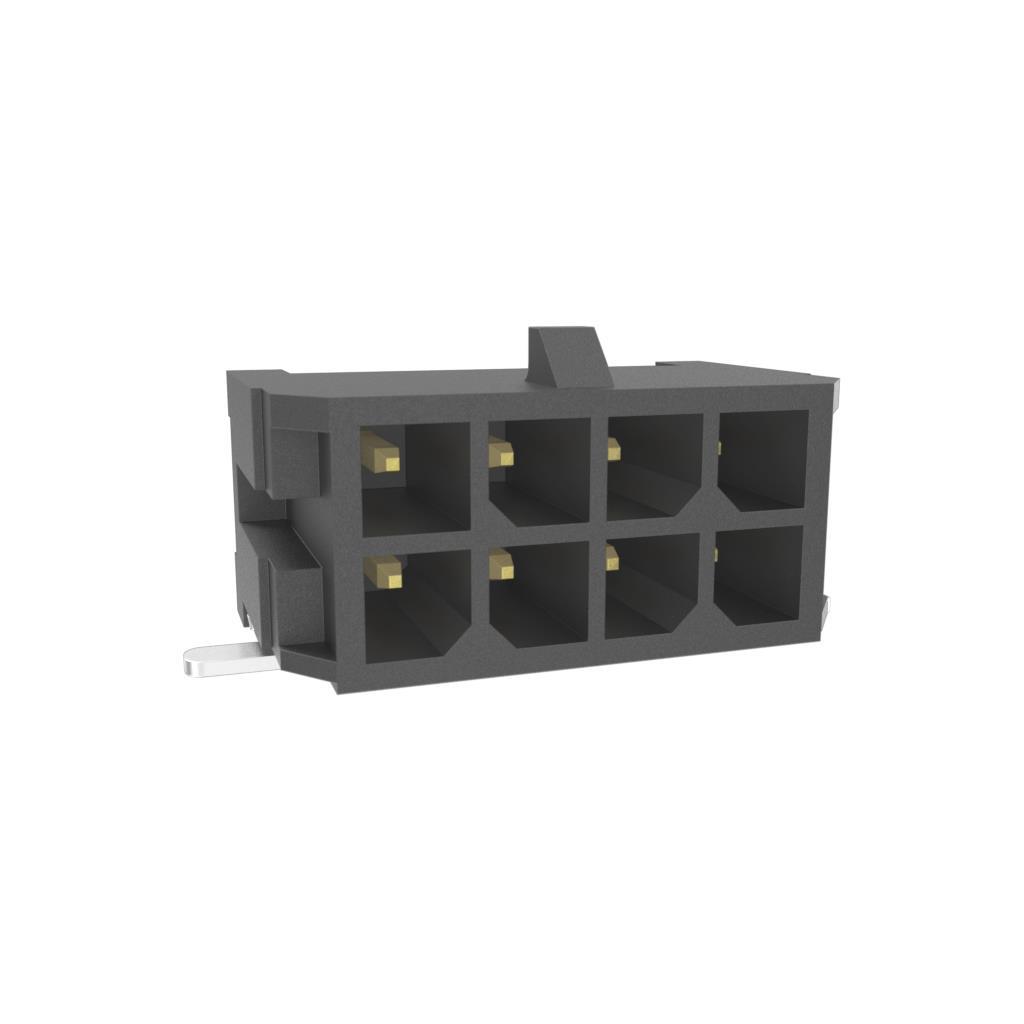

The Amphenol ICC (FCI) 10137924-0841LF is a Minitek Pwr Hybrid 3.0 right-angle header connector designed for power and signal applications. It features an 8-position, dual-row configuration with a 3.00mm pitch. The component utilizes surface mount technology with solder tail termination. Contacts are made of copper alloy with gold plating. The housing is constructed from black liquid crystal polymer (LCP), rated UL94 V-0. It supports current ratings up to 5A and operates within a temperature range of -40°C to +105°C.

Feature Summary

• Hybrid design integrating power and signal connectivity in a single compact form factor
• Right-angle surface mount construction with solder tails for automated PCB assembly
• High-temperature resistant LCP insulation material ensuring stability under thermal stress

Applications

• Power distribution modules in server infrastructure
• Signal interconnection in communication equipment
• Board-to-board connections in industrial control systems

Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and packaging type. Ensure the selected variant matches the required current rating and pin count for the target application. Confirm RoHS compliance status through official manufacturer documentation prior to procurement. Cross-reference the DigiKey or Mouser part number to validate availability and lead times directly from authorized distributors.

Selection Notes

Select this connector when hybrid power and signal routing is required in space-constrained environments. The 3.00mm pitch allows for higher density compared to standard power connectors. Ensure the mating connector aligns with the Minitek Pwr Hybrid 3.0 series specifications. Verify that the PCB layout accommodates the right-angle profile and solder tail dimensions for proper mechanical retention.

Part Context

This component belongs to the Minitek Pwr Hybrid 3.0 series by Amphenol ICC (FCI). The series is engineered for high-density applications requiring both power delivery and signal integrity. It complements other Minitek products like the Pwr 3.0 and Pwr 4.2 lines, offering specialized solutions for modern electronic systems demanding reliable interconnects in compact footprints.

Replacement Considerations

Direct substitutes within the same series include variants with different pin counts such as 10137924-0831LF or 10137926-0412LF. Ensure any replacement maintains the 3.00mm pitch and right-angle SMT configuration. Verify that the alternative part number supports the same current and voltage ratings before implementation.
