10137924-2242LF

Overview

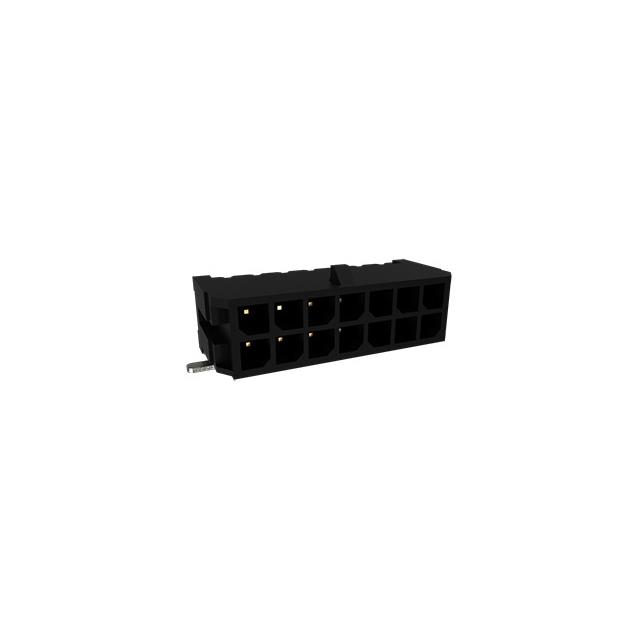

The Amphenol ICC (FCI) part number 10137924-2242LF is a Minitek Pwr 3.0 series header connector designed for power-to-board applications. It features 18 positions with a 3.00 mm pitch, arranged in a dual-row configuration. The component utilizes male pin contacts with gold plating and is intended for surface mount installation at a right angle. Rated for 600 VAC and 8.5 A, it employs Liquid Crystal Polymer insulation and operates within a temperature range of -40°C to +105°C.

Feature Summary

• Supports high-power transmission with a 600 VAC rating and 8.5 A current capacity per contact.
• Features a right-angle surface mount design optimized for compact board layouts.
• Utilizes gold-plated male pins to ensure reliable electrical conductivity and corrosion resistance.

Applications

• Power distribution modules in industrial equipment
• Server and storage system internal power connections
• Communication infrastructure power boards

Procurement Notes

Verify the specific ordering suffix to confirm contact finish thickness and packaging quantity. Ensure the procurement channel provides valid traceability documentation. Confirm that the received components match the Minitek Pwr 3.0 series specifications regarding pitch and row count before integration into the manufacturing process.

Selection Notes

Select this component when a robust, high-current connection is required in space-constrained environments. The right-angle SMT form factor facilitates efficient PCB routing. Verify that the mating cable or board footprint aligns with the 3.00 mm pitch and dual-row geometry to prevent mechanical interference during assembly.

Part Context

This connector belongs to the Minitek Pwr 3.0 family, engineered for demanding power delivery scenarios. The series is characterized by its ability to handle significant current loads while maintaining a low profile. It serves as a critical interface between power sources and circuit boards in modern electronic systems requiring stable performance.

Replacement Considerations

Direct substitutes must maintain the 3.00 mm pitch, 18-position count, and dual-row configuration. Compatible alternatives should offer equivalent voltage and current ratings with matching surface mount footprints to ensure seamless mechanical and electrical integration without redesigning the host PCB.

FAQ

What is the rated current for each contact?

Each contact is rated for 8.5 A under standard operating conditions.

Is the connector RoHS compliant?

Yes, the part number includes the 'LF' suffix, indicating it is lead-free and RoHS compliant.
