10137924-2411LF

Overview

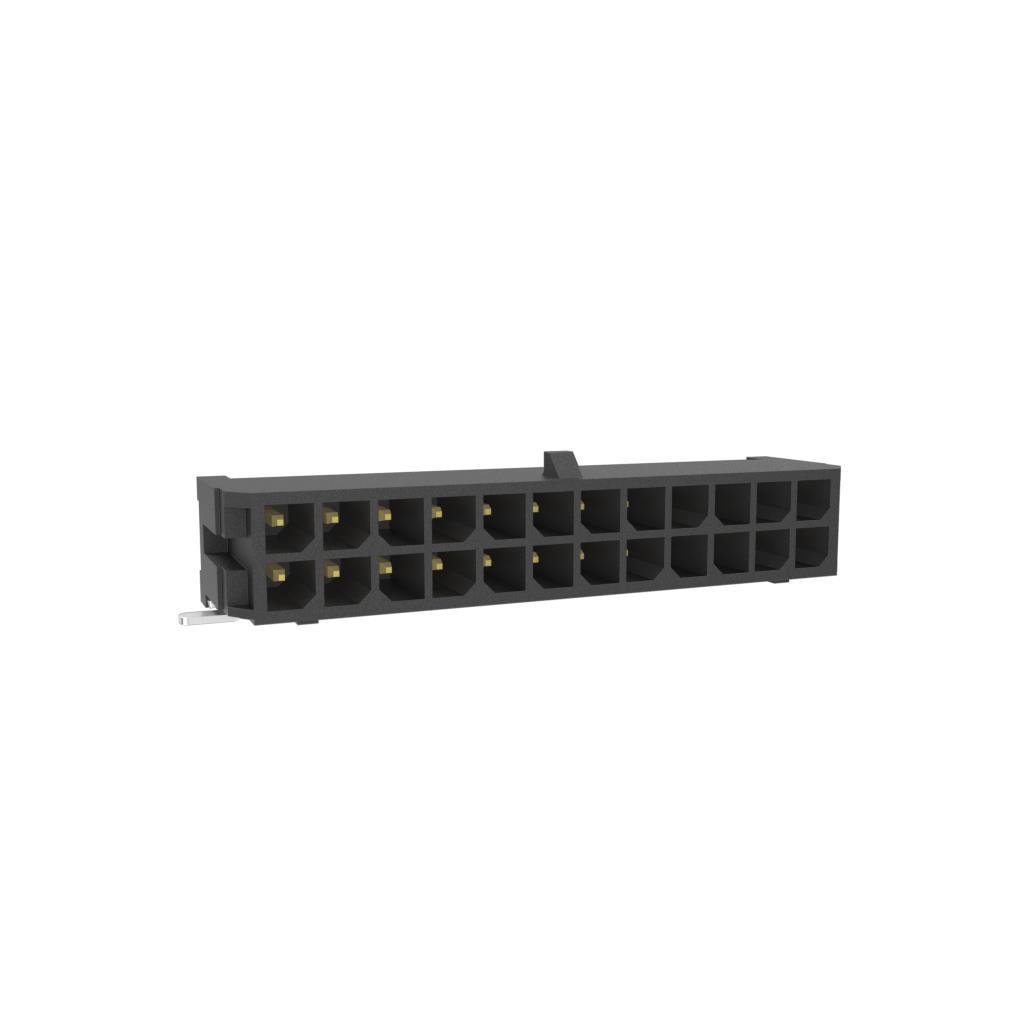

The Amphenol ICC (FCI) 10137924-2411LF is a surface mount, right-angle header connector from the Minitek Pwr 3.0 series. It features 24 positions with a 3.00mm pitch and utilizes male pin contacts. The component is designed for board-to-wire applications, employing a gold-plated contact finish to ensure reliable signal transmission. Constructed with liquid crystal polymer insulation, it supports high-temperature environments up to 105°C while maintaining UL94 V-0 flammability ratings.

Feature Summary

• Dual-row surface mount architecture for compact PCB integration
• Right-angle design facilitates efficient space utilization
• Gold-plated male pins provide durable electrical connectivity

Applications

• Board-to-wire interconnections in industrial equipment
• Power distribution modules requiring robust headers
• High-density electronic assemblies utilizing Minitek Pwr 3.0 systems

Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm exact pin count and plating specifications. Ensure compatibility with mating cable assemblies before procurement. Confirm current availability status directly with authorized distributors as lead times may vary based on production schedules.

Selection Notes

Select this component when a dual-row, right-angle surface mount header is required for board-to-wire connections. The 3.00mm pitch accommodates standard wire gauges within the Minitek Pwr 3.0 ecosystem. Verify that the operating temperature range of -40°C to 105°C meets the environmental requirements of the target application.

Part Context

This part belongs to the Minitek Pwr 3.0 series, which offers various configurations for power and signal interconnects. The series is characterized by its high current carrying capacity and reliable performance in demanding environments. Other variants in this family share similar mechanical dimensions but differ in position counts and termination styles.

Replacement Considerations

Direct substitutes must match the 24-position, dual-row, right-angle SMT configuration with a 3.00mm pitch. Verify that alternative components maintain identical contact materials and insulation properties to ensure functional equivalence.
