Product Detailed Parameters
- Description：10137925-1631LF-MTK 3.0 16P DR R
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.345" (8.76mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：15.0µin (0.38µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Halogen Free
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

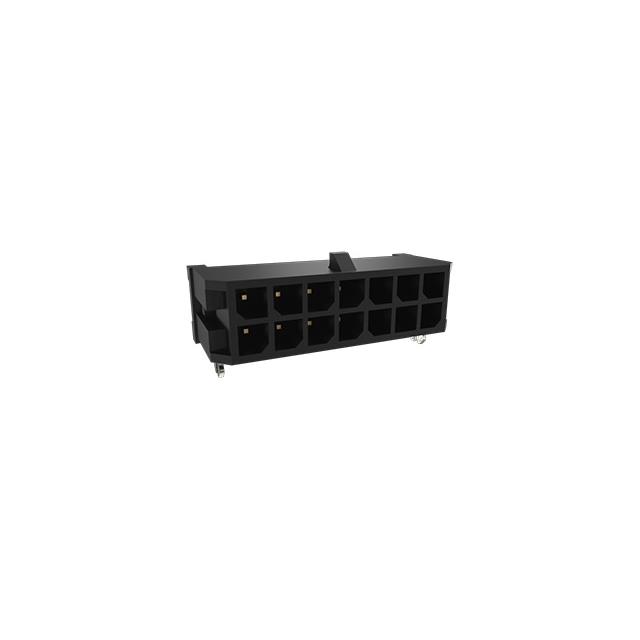

The Amphenol ICC (FCI) part number 10137925-1631LF is a Minitek Pwr Hybrid 3.0 connector header designed for surface mount, right-angle installation. It features 16 positions with a 0.118-inch (3.00mm) pitch. The component utilizes male pin contacts made of copper alloy with tin plating. It is constructed from halogen-free liquid crystal polymer (LCP) insulation rated UL94 V-0 and operates within a temperature range of -40°C to 105°C.
Feature Summary
- Hybrid design supporting simultaneous power and signal transmission
- Right-angle surface mount termination for compact board layouts
- Halogen-free LCP insulation material for environmental compliance
Applications
- Power distribution in industrial control systems
- Signal interconnection in communication equipment
- Board-to-board connections in commercial electronics
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to ensure correct packaging and contact finish specifications. Confirm that the selected variant matches the required current rating and thermal performance for the intended application environment before finalizing procurement orders.
Selection Notes
Select this component when a right-angle, surface-mount solution is required for mixed-signal applications. Ensure the PCB footprint accommodates the 3.00mm pitch and verify that the housing height fits within the mechanical constraints of the assembly enclosure.
Part Context
This part belongs to the Minitek Pwr Hybrid 3.0 series by Amphenol ICC (FCI). The series integrates power and signal contacts into a single connector system, simplifying assembly processes. It is engineered for high-density applications requiring reliable electrical connectivity in space-constrained electronic devices.
Replacement Considerations
Direct substitutes must match the 16-position count, 3.00mm pitch, and right-angle SMT form factor. Verify compatibility with existing tooling and PCB silkscreen markings when considering alternative manufacturers.
