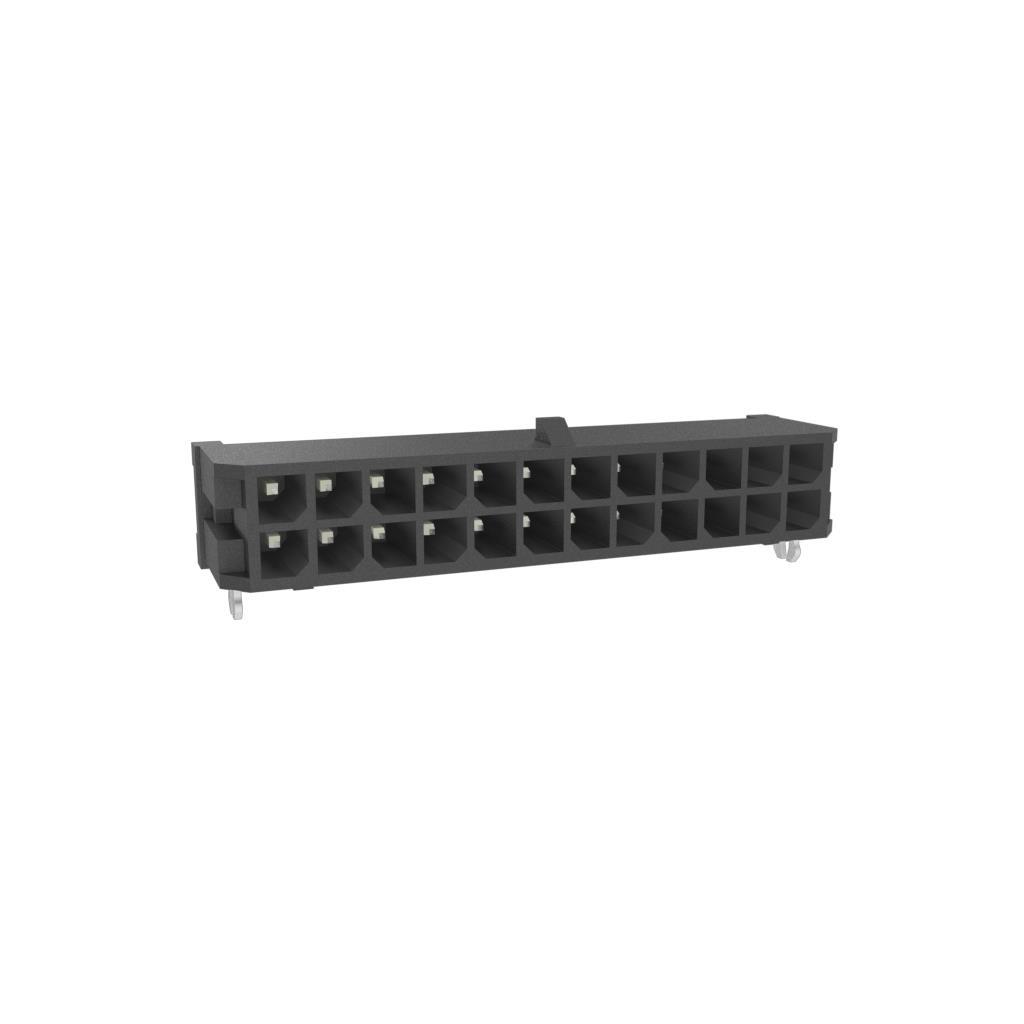

10137925-2411LF

$1.63

Description：CONN PWR3.0 R/A SMT
Series：Minitek® Pwr 3.0
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:bc5f3b7de998 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN PWR3.0 R/A SMT
Series：Minitek® Pwr 3.0
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.118" (3.00mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：0.118" (3.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.290" (7.37mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP), Halogen Free
Features：Board Lock, Glow Wire Compliant
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10137925-2411LF

Overview

The Amphenol ICC (FCI) part number 10137925-2411LF is a Minitek Pwr 3.0 series power connector header designed for surface mount termination. It features a right-angle configuration with 24 positions arranged in a dual-row layout. The component utilizes a 3.00mm pitch and includes a 600VAC voltage rating alongside an 8.5A current capacity per contact. Constructed with liquid crystal polymer insulation and copper alloy contacts, it supports high-density power distribution in compact electronic assemblies.
