Product Detailed Parameters
- Description：10137925-2432LF-MTK 3.0 24P DR R
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.345" (8.76mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：15.0µin (0.38µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Halogen Free
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

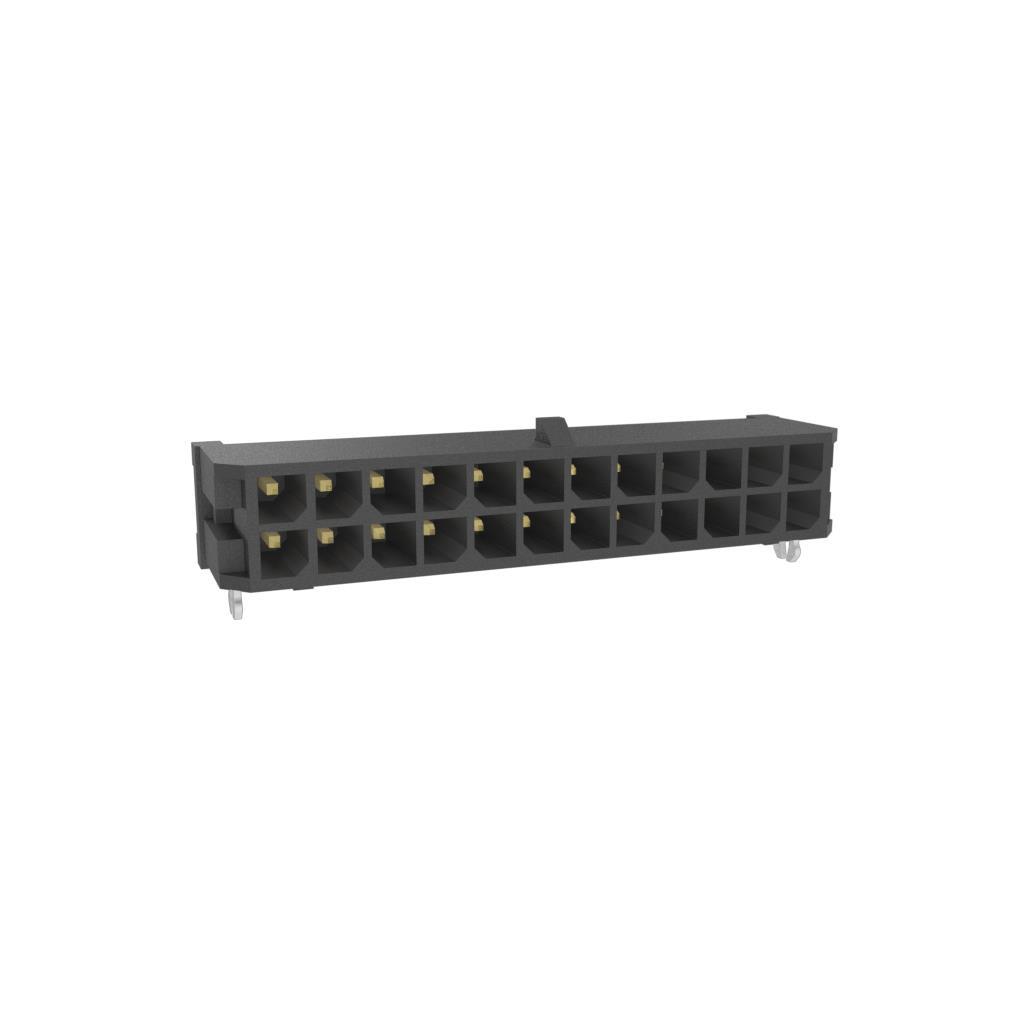

The Amphenol ICC (FCI) part number 10137925-2432LF is a surface mount right-angle header connector belonging to the Minitek Pwr 3.0 series. It features 24 positions with a 3.00 mm pitch and utilizes gold-plated copper alloy contacts housed in black liquid crystal polymer. Designed for board-to-cable applications, it supports vertical termination and includes fixed solder tails.
Feature Summary
- High-density power distribution via 24-position dual-row configuration
- Robust mechanical stability through right-angle surface mount design
- Corrosion resistance provided by gold contact plating
- Thermal endurance supported by high-temperature LCP insulation
Applications
- Industrial control system power interfaces
- Server and storage backplane connections
- Telecommunications equipment power distribution
- Automotive electronic module interconnects
Procurement Notes
Verify component authenticity using official manufacturer documentation and serial tracking. Confirm that the specific suffix matches the required pin count and termination style. Ensure compliance with RoHS directives and check moisture sensitivity levels prior to assembly. Validate supplier authorization to prevent counterfeit components.
Selection Notes
Select this connector when high current capacity and compact form factors are required. The 3.00 mm pitch allows for efficient space utilization on dense circuit boards. Verify that the mating cable or harness aligns with the specified terminal dimensions. Consider thermal management requirements given the power rating capabilities of the series.
Part Context
This component is part of the Minitek Pwr 3.0 family, engineered for demanding power delivery environments. The series emphasizes reliability and high current handling within a small footprint. It complements other FCI solutions for complete system interconnect needs.
Replacement Considerations
Direct substitutes include 10137926-0412LF for different position counts within the same series. Cross-reference with 10127721-243NPLF for similar vertical power header configurations. Always validate mechanical fit and electrical ratings before substitution.
